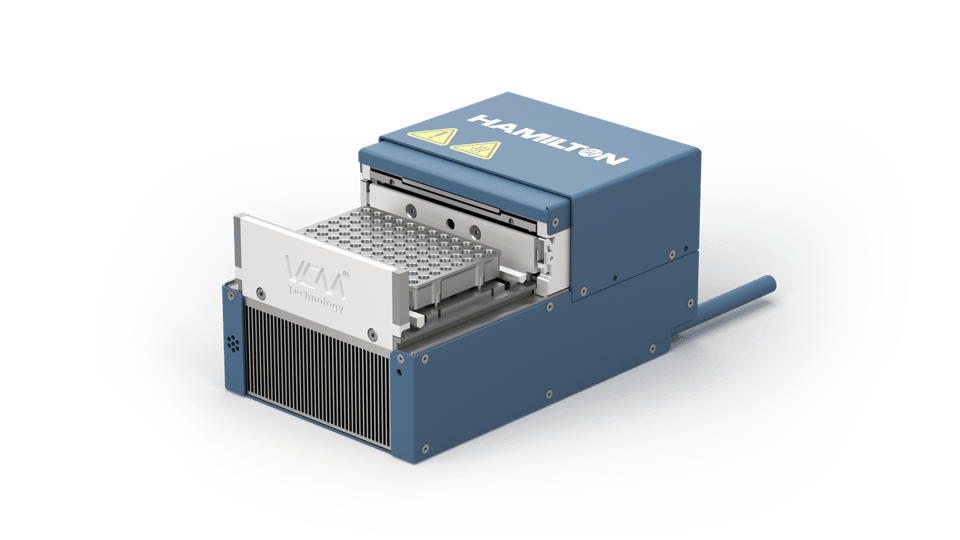

On-Deck Thermal Cycler

Name: On-Deck Thermal Cycler
Brand: Hamilton Company
SKU: On-Deck Thermal Cycler

2 K/s Cooling Rate

Rapid Temperature Cycles

4 K/s Heating Rate

Temperature uniformity

±0.20 K

At 55 ºC, 72 ºC, 95 ºC

Full pipetting access

96- and 384-well formats

Streamlined PCR workflows

Highly efficient, consistent PCR workflows

The ODTC integrates with Hamilton automated liquid handling workstations to automate multi-step genomic workflows with fast runs and high performance.

High-precision, automated thermal cycling

As a complete walkaway solution, the ODTC uses innovative 3D vapor chamber technology for streamlined, precise, and highly reproducible PCR workflows. With broad operating temperature range, unparalleled accuracy and uniformity, and adjustable heating and cooling rates, our ODTC excels in markets like:

Clinical Diagnostics
Food, Beverage, and Agricultural Sciences
Forensics
Genomics
Pharma & Biopharma

Simple liquid handler integration

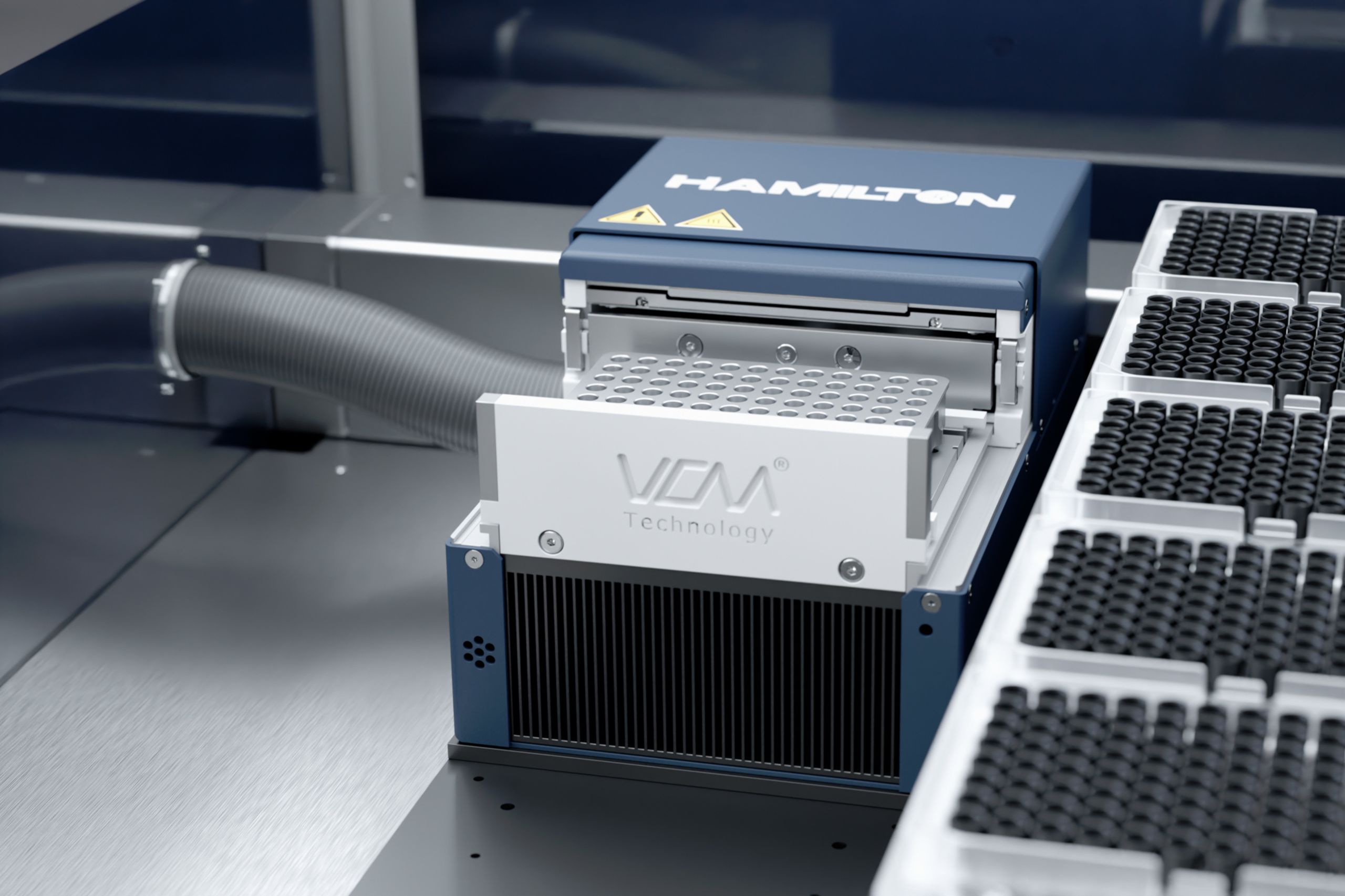

Available in 96-well and 384-well formats, the ODTC occupies 2.5 ANSI/SLAS footprint sites on the Hamilton liquid handling platform deck, with an external controlling unit and power supply. Full access is available for direct pipetting into PCR plates during heating and cooling. Temperature is maintained even when the lid is open.

Common applications Genomics, PCR Set-Up, NGS Library Prep, Single Cell Analysis, Agri-Food and Beverage

The Hamilton ODTC fully integrates onto our automated liquid handling decks for highly efficient, precise results with walkaway convenience.

The temperature-adjustable ODTC lid prevents condensation, while our Comfort Lids fit PCR plates precisely to minimize evaporation during thermal cycling.

The ODTC offers high well-to-well uniformity along with rapid heating and cooling rates and a seamless transition into plateau phases.

Multiple ODTC may be integrated on select Hamilton automated liquid handlers. Contact your local Hamilton representative for details.

Explore the Hamilton On-Deck Thermal Cycler

ODTC lid

Adjustable lid temperature range between ambient temperature +5.0 K up to 115 ºC as well as adjustable pressure and horizontal opening and closing.

Temperature accuracy

±0.3 Kelvin at 55 º C

Temperature uniformity

±0.2 Kelvin at 55 º C, 72 º C, 95 º C

Heating and cooling rate

Heat: Adjustable from 0.1 K to 4.4 K per second. Cool: Adjustable from 0.1 K to 2.2 K per second.

Ventilation orientations

Left, right, rear, and down ventilation options. Additionally, tunnels can be added to vent air out of the pipettor, preventing heat buildup and protecting samples on the deck.

PCR plate compatibility

Accepts standard, low-profile and high-profile PCR plate designs.
