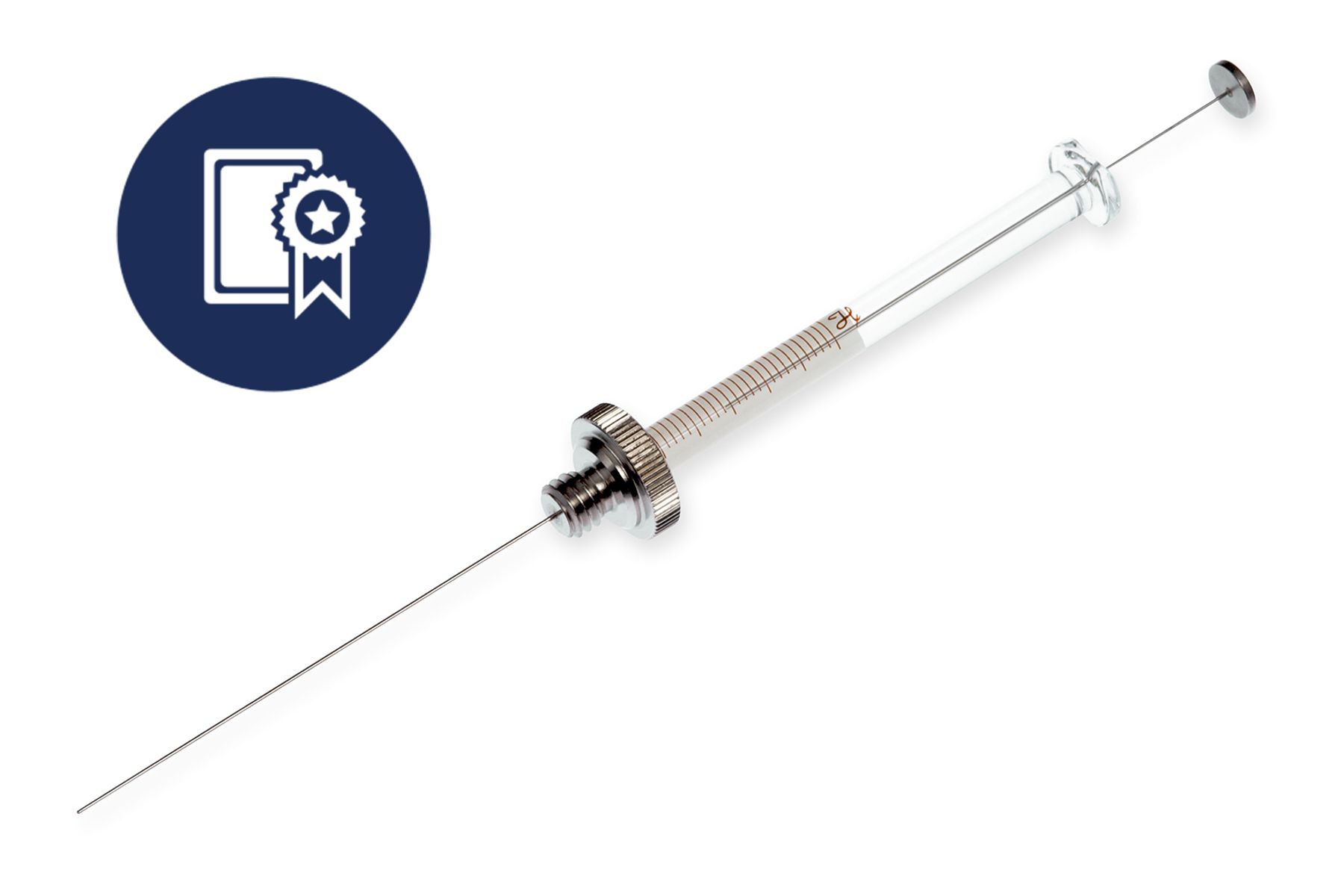

5 µL, Microliter Autosampler Perkin Elmer Syringe, PN: 88035

Cemented Needle (N) 23s gauge (0.63 mm), 2.75 in (70 mm), point style 3: blunt

Part # CAL88035

This 700 series #75 syringe features a stainless-steel plunger individually fitted to its barrel giving it a velvet feel. This 5 µL syringe (PN:88035) is made from high-quality and chemically resistant materials. This syringe comes with a calibration certificate traceable by NIST standards and is accurate and precise to ±1%.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

5 µL, Microliter Autosampler Perkin Elmer Syringe, PN: 88035 Details

Hamilton's 700 series, Microliter # 75 Cemented Needle (N) Perkin Elmer Autosampler Syringe is designed for use with Perkin Elmer Autosystem and Clarus 500 GC autosamplers.

Hamilton's 700 series syringes offer a velvet feel, featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.

Compatible Autosamplers:

Perkin Elmer Autosystem and Clarus 500 GC Autosamplers



Common applications Veterinary Sciences

PerkinElmer Autosampler Syringe

  • The Needle Termination with the syringe nut aligns with the carriage thumbscrew for a secure, leak-proof connection.
  • The metal plunger provides durability and precision.

Stainless Steel Fitted Syringe Design

  • Each Microliter Syringe features a stainless-steel plunger fitted precisely to its glass barrel for optimal performance.
  • A tolerance of less than 0.003 mm guarantees precise performance.
Scientific Citations

  • Precise Micro-injections with Zero Dead Volume

    In invertebrate model organisms, I prefer Hamilton syringes in my studies because of the low margin of error, no dead volume, and customizable tip options for innate immunity or survival etc.

    Serhat Kaya, Ph.D.
    Senior Researcher, Çanakkale Onsekiz Mart University | Turkey | Department of Biology

5 µL, Microliter Autosampler Perkin Elmer Syringe, PN: 88035 Specifications

Print
Volume 5 µL
Syringe Type Microliter
Syringe Series 700
Termination Cemented Needle (N)
Needle Cemented Needle
Gauge 0.63 mm
Point Style 3: Blunt
Needle Length 2.75 inches (69.9 mm)
Plunger Style Standard Plunger
Fluid Path SST, borosilicate glass
Autoclavable No
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Operating Temperature 50°C / 122°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.014 inches (0.343 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.0183 inches (0.46 mm)
Needle Outer Diameter 0.025 inches (0.64 mm)
Std Needle Dead Volume 0.89 µL
0.35 µL
Sales Quantity 1 syringe per pack
Syringe Model Number 75

5 µL, Microliter Autosampler Perkin Elmer Syringe, PN: 88035 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Instructions Microliter Syringes

Instruction

Instructions - Microliter Syringes

Discover the proper use and care instructions for Hamilton Microliter™ Syringes—precision instruments crafted for accurate low-volume liquid handling. Includes best practices for handling, cleaning, and prolonging syringe life.
HAM Instructions Syringe Calibration

Instruction

Instructions - Syringe Calibration

Learn about Hamilton’s precise syringe calibration procedure using gravimetric measurements. Follow our standardized method to ensure syringe accuracy and reliability.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringe Plungers

Article

Syringe Plunger Types

Hamilton manufactures a variety of plungers depending on the intended use of the syringe. This article describes which plunger design and materials are optimal for each type of syringe.
Syringe Terminations

Article

Syringe Terminations

One of the first steps to understanding the ideal syringe for your specific application is to know which termination is best. This article helps you make that determination, explaining what to choose based on your requirements like dispense volume, need for autoclaving, desired dead volume, pressure tolerances, or necessary headspace.
Syringe 1800 Series

Article

Syringe Dimensions

See the specific volumes, outer diameter measurements, and inner diameter measurements of all microliter syringes.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Plunger faq

FAQ

Are the plungers for the 700 Series Microliter syringes interchangeable?

No, they are not! Each plunger is fitted to a specific syringe barrel. Be very careful to keep each plunger with its original syringe in order to maximize syringe performance.
Accuracy of Hamilton syringes 1

FAQ

How can I sterilize my syringe?

Chemical sterilization is the preferred method for all Hamilton products. Autoclaving syringes should only be used as a last resort and only where specifically stated. Syringe sterilization is not straightforward. Not all syringes can be autoclaved.
Hamilton Syringes

FAQ

Are Hamilton syringes suitable for PFAS testing?
