200 µL, Gastight Syringe, Constant Rate, PN: 84302

22 gauge, 2 inch (51 mm), Point Style 3: Blunt

Part # 84302

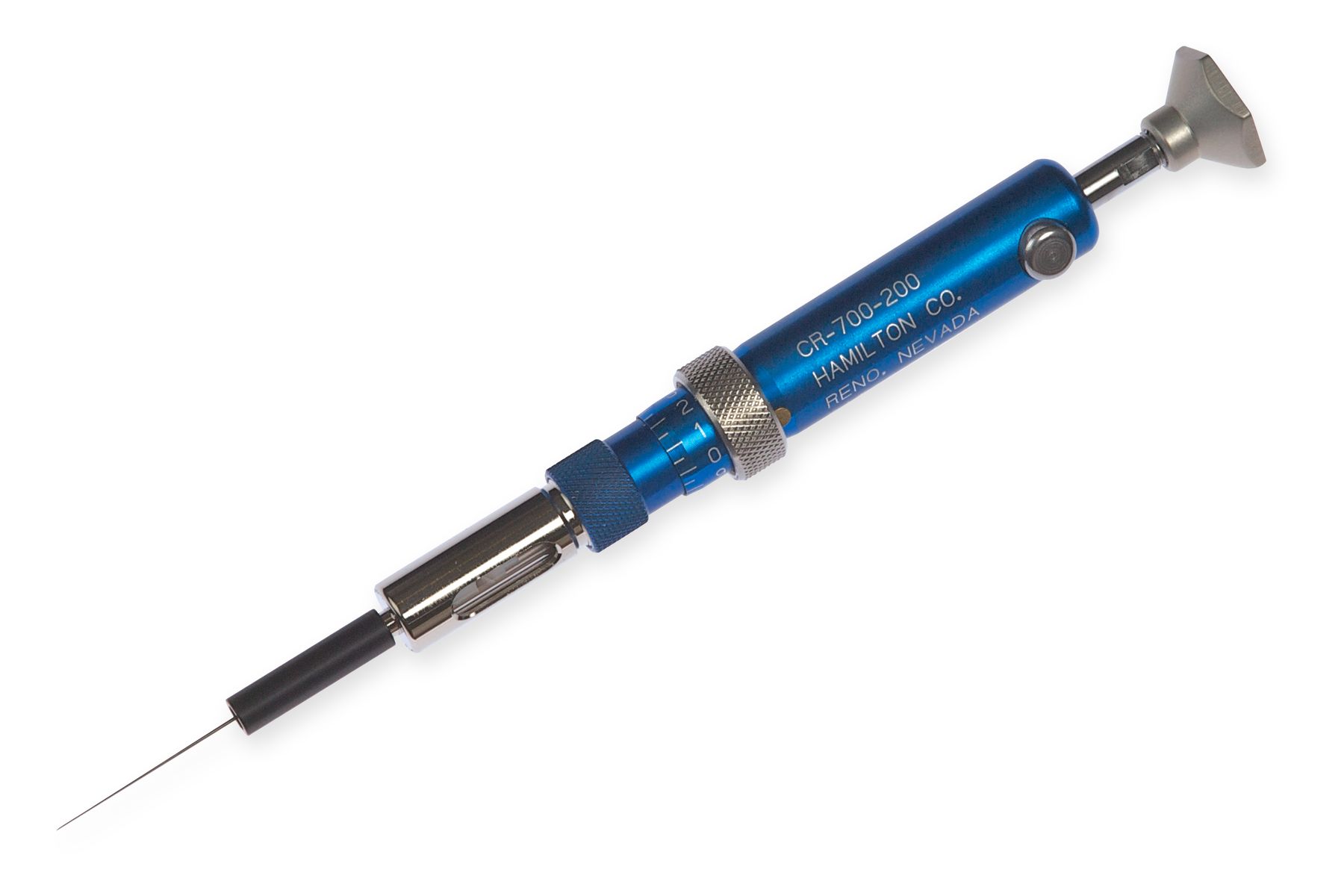

This CR700 Constant Rate syringe (PN: 84302) is a 200 uL volume syringe that offers reproducible constant flow dispensing via a push button. The volume is adjustable with a micrometer screw and can be fixed using a locked ring.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

200 µL, Gastight Syringe, Constant Rate, PN: 84302 Details

Hamilton's Gastight #CR700 Constant Rate syringe has preset volumes that can be dispensed at a constant flow rate. The volume is adjustable with a precisely adjustable micrometer screw. The adjusted volume can be fixed with a locking ring. Reproducible injection speed is obtained by means of a spring. The sample is delivered by pressing the push button. Constant Rate Syringe needles are 51 mm in length and point style 3.

  • Gastight Syringes Ensures Integrity of Environment Sensitive Catalysts (or Samples)

    For such, we utilize highly reactive catalysts that are in many cases air and moisture-sensitive. Gastight Hamilton syringes are essential to maintaining the catalyst integrity and, therefore, ensuring reproducible and trustable results.

    Stella A. Gonsales
    Assistant Professor, University of Chemistry and Technology Prague | Department of Polymers

200 µL, Gastight Syringe, Constant Rate, PN: 84302 Specifications

Print
Volume 200 µL
Syringe Type Gastight
Syringe Series CR-700
Termination Special
Needle CR-700
Gauge 22 gauge
Point Style 3: Blunt
Needle Length 2 inch (51 mm)
Fluid Path SST, Borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 500 psig (34.5 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Needle Inner Diameter 0.0161 inches (0.41 mm)
Needle Outer Diameter 0.0283 inches (0.72 mm)
Std Needle Dead Volume 6.81 µL
Sales Quantity 1 syringe per pack
