Fluoreye
1 ANSI/SLAS Deck Position
Retrofittable
No Liquid Contact
Rapid Read Speed
<3 Minutes
96 Samples
Encrypted Bluetooth®
Up to 6000 Samples
Measured per Charge

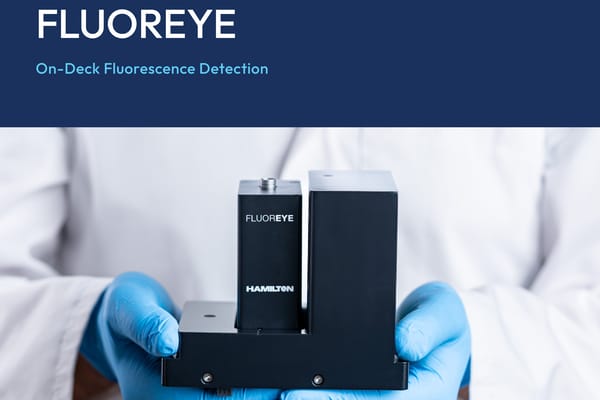

Space-Saving, On-Deck Fluorescence Measurements
The Fluoreye mobile fluorescence reader is operated by a 1000 µL pipetting channel, moving to and measuring samples in 96-well flat-bottom plates.
Fully Integrated, Hands-Free Nucleic Acid Quantification and Normalization
Fluoreye is a compact powerhouse, measuring fluorescence in 96-well flat-bottom plates without contacting samples. It offers dual excitation wavelengths at 470/625 nm and detection wavelengths at 520/680 nm, with results in less than three minutes (96-well plates).
Fluoreye offers sensitive detection of fluorescently tagged or auto-fluorescent samples for increased specificity.
Conveniently Hands-Free, On-Deck Automated Fluorescence Detection
Add the Fluoreye to a single deck position on any Microlab STAR, Microlab STAR V, or Microlab VANTAGE liquid handler, and control it through the VENUS software. The mobile device attaches to a 1000 µL CO-RE pipetting channel to move from the base station to a sample plate, where it measures fluorescence in up to 6000 samples per charge and transmits data back to the base station via Bluetooth. The base station contains a battery charger, identifies the correct mobile device, and interfaces with the automated liquid handler. Up to four Fluoreye units may be added to a deck (not for simultaneous use).
Common applications Genomics, Nucleic Acid Quantification & Normalization, NGS Library Prep, Cell Biology, Cell Culture
With the deck-mounted Fluoreye, actions are automated and tracked to enhance quality and process stability while removing risks of variability and errors.
Focus on other tasks and eliminate repetitive manual tasks while fluorescence detection is automatically performed using the integrated Fluoreye.
Extend and scale the end-to-end workflow, including fluorescence readings on any Microlab STAR, Microlab STAR V, and Microlab VANTAGE platform.
The Fluoreye is fully compatible with most fluorescent DNA/RNA test kits to support quantification and normalization processes.
Explore the Fluoreye
1
Fluoreye Mobile Device
Moves to samples by attaching to a 1000 µL CO-RE pipetting channel and contains the fluorescence reader, RFID tag, and battery.
2
Fluoreye Base Station
Uses one ANSI/SLAS deck position, contains the battery charger, hosts a function check source, identifies mobile device RFID tags, and interfaces with the liquid handler.
3
Rechargeable Battery
Supports up to 6000 fluorescence measurements per full battery charge.
4
Fluorescence Optics
Two sets of excitation LEDs and sensors facilitate many assay chemistries, using variable excitation and detection wavelength combinations.
5
Dark Mode Measurements
Uses no excitation and offers ambient light compensation without using shading or dark housings.
6
Bluetooth Communication
Using Bluetooth technology, data originating from the mobile device is fully encrypted as it is transmitted to the base station.
