PSD/4 Precision Syringe Pump
Small Footprint, Big Impact

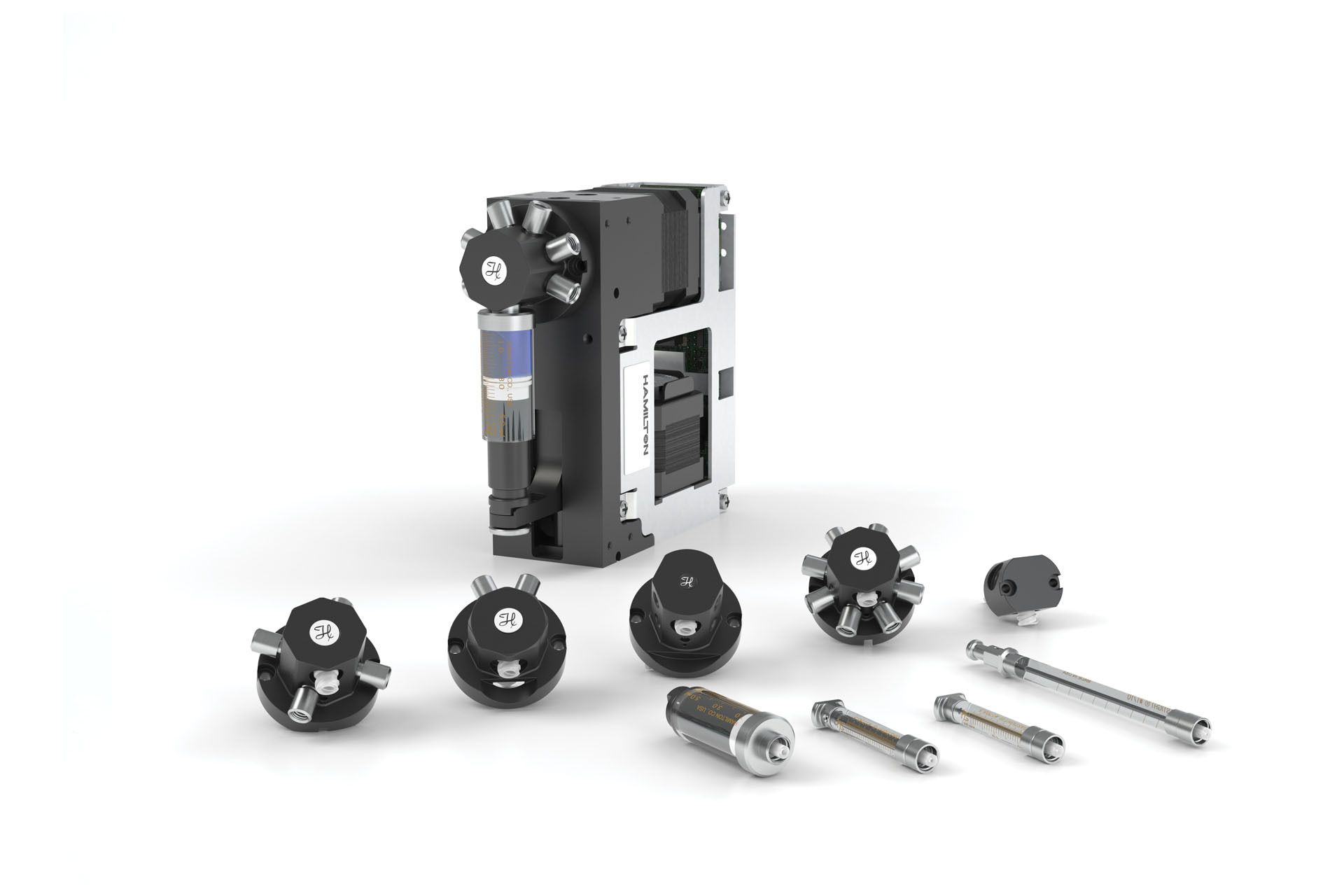

The PSD/4 is Hamilton's most compact syringe pump. The space saving design uses 30 mm half-height syringes and performs all standard liquid handling functions, including dispensing, serial dispensing and diluting.
- 30 mm stroke length
- Variety of mounting options — front, back, top, bottom, and side
- Easy serviceability: Modular design allows quick plug and play replacement
- Small footprint suits limited spaces
- RoHS compliant and CSA certified
- Can be used in CE certified assemblies
-
The standout feature for us has been the easy-to-change valve configurations paired with the Luer Lock syringe barrels.
Switching to Hamilton’s PSD range of pumps was seamless. The standout feature for us has been the easy-to-change valve configurations paired with the Luer Lock syringe barrels, which make installation and maintenance incredibly simple - a benefit our customers appreciate just as much as we do.
Richie Bullock
Project Leader
Explore all PSD/4 Precision Syringe Pumps
Syringe Pump Specifications
| PSD/4 Type | Highest Resolution (steps/stroke) | Fastest/Slowest (time/stroke) | Size = D X H X W (in) | Linear Force Capability (lbf) | Valve Torque Capability (in oz) | Weight (lbs) |
|---|---|---|---|---|---|---|
| Standard | 24,000 | 1.0 sec / 50 min | 4.2 x 5 x 1.75 | 20 | 25 | 2.6 |
| Smooth Flow | 192,000 | 14.1 sec / 480 min | 4.2 x 5 x 1.75 | 20 | 25 | 2.6 |
| High Lift Force | 54,857 | 2.3 sec / 114 min | 4.2 x 5 x 1.75 | 40 | 25 | 2.6 |
| High Valve Torque | 24,000 | 1.0 sec / 50 min | 4.99 x 5 x 1.75 | 20 | 75 | 3.1 |
| High Valve Torque and Lift Force | 54,857 | 2.3 sec / 114 min | 4.99 x 5 x 1.75 | 40 | 75 | 3.1 |
