easyPick STAR Line
Select By
Size, Shape
Or Proximity
Up to
400
Colonies per Hour
Supports
Petri Dishes
And ANSI/SLAS Plates
Colony Picking Made Easy
The integration of image analysis and automated liquid handling on the easyPick STAR Line makes identifying and picking bacterial colonies a breeze.
Rapid and Reliable Automated Colony Picking
The easyPick STAR Line automates colony picking as part of a broader automated workflow. This automated system [1] starts with your choice of a Microlab STAR or Microlab STARlet. Each option incorporates a high-resolution camera and light table to rapidly capture images of bacteria, yeast, fungi, and mammalian cells. Defined labware includes micro plates and Petri dishes up to 100 mm diameter. Images are analyzed using easyPick software based on user criteria like size, morphology, location, and proximity. Color mode further enhances colony selection, and the software may be fine-tuned to each user’s needs.
Precision Colony Sample Preparation
Once identified, the colonies are picked and transferred to a destination plate. Up to 400 colonies may be isolated per hour. Up to 8 independent CO-RE II pipette channels and other user-specified integrated tools aid downstream processes such as plasmid isolation, sample preparation for PCR and sequencing, and gel loading. All sample and meta information is stored and sent to an Integrated Laboratory Information Management System (LIMS).
Common applications Biobanking, Pharma & Biopharma, Gene and Cell Therapy, Microbial Strain and Fermentation Development, Cell Line Development
Each user may easily set, prioritize, and change colony isolation criteria specific to their application needs.
Automated identification and isolation reduce the risk of cross-contamination from neighboring colonies and performance variability.
Samples are fully tracked through the automated workflow, including before and after images. All data may be sent to a LIMS.

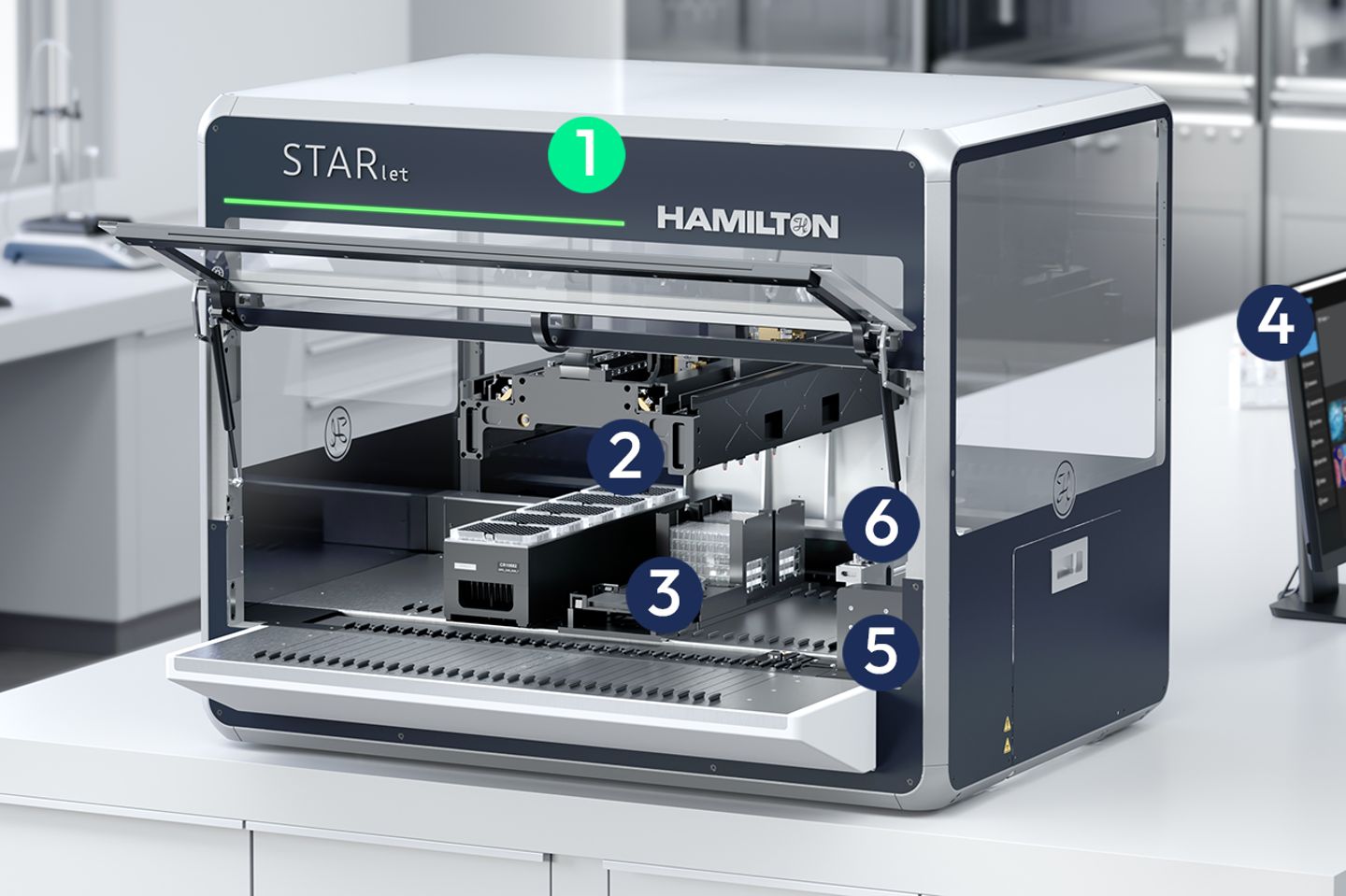

Explore the easyPick STARlet
1
Microlab STAR or STARlet
Automates all pipetting tasks and integrates other tools necessary for the colony picking workflow.
2
Imaging Channel
Enables precise imaging of sample plates for image analysis.
3
easyPick Light Table
Mounts on a Multiflex carrier base to illuminate sample plates.
4
easyPick Software
Analyzes imaged colonies based on user-defined parameters such as size, shape, color, proximity, and location.
5
Autoload and 1D/2D Barcode Scanner
Enables full sample tracking and proper consumable placement.
6

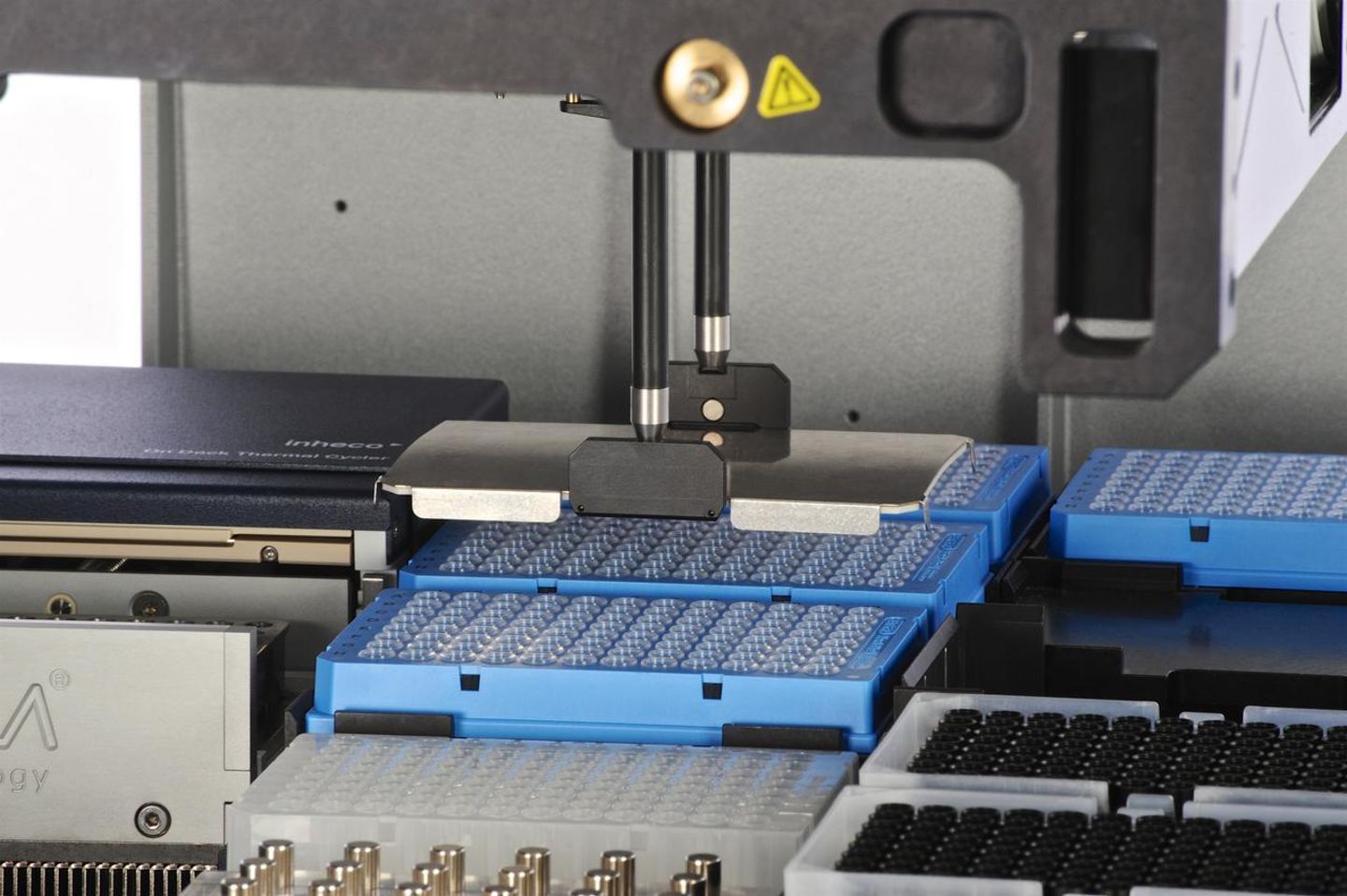

CO-RE Gripper or iSWAP, Optional
Transports labware around the easyPick STAR Line deck without requiring manual intervention.
easyPick STARlet Specifications
easyPick STARlet Specifications
PrintSystem Dimensions
- Height
- 90.3 cm (2 ft, 11.55 in)
- Width
- 1.12 m (3 ft, 8.09 in)
- Depth
- 78.1 cm (2 ft, 6.75 in)
Transport Tools
- CO-RE Gripper
- Standard
Platform/Accessories
- Capacity (ANSI/SLAS Positions)
- 25
Sample Loading and Tracking Options
- Sample Loading
- Automatic
- Autoload Barcode Scanner (1D)
- Standard
- Autoload Barcode Scanner (2D)
- Optional
Pipetting Options
- 1 mL Channels
- Up to 8
- Pipetting Range 1
- 1 µL - 1000 µL
easyPick STAR Specifications
PrintSystem Dimensions
- Height
- 90.3 cm (2 ft, 11.55 in)
- Width
- 1.66 m (5 ft, 5.35 in)
- Depth
- 78.1 cm (2 ft, 6.75 in)
Transport Tools
- CO-RE Gripper
- Optional
- Internal Plate Gripper (IPG)
- Optional
Platform/Accessories
- Capacity (ANSI/SLAS Positions)
- 55
Sample Loading and Tracking Options
- Sample Loading
- Automatic
- Autoload Barcode Scanner (1D)
- Standard
- Autoload Barcode Scanner (2D)
- Optional
Pipetting Options
- 1 mL Channels
- 8
- Pipetting Range 1
- 1 µL - 1000 µL
1 Depending on Configuration
