Small Footprint, Big Impact

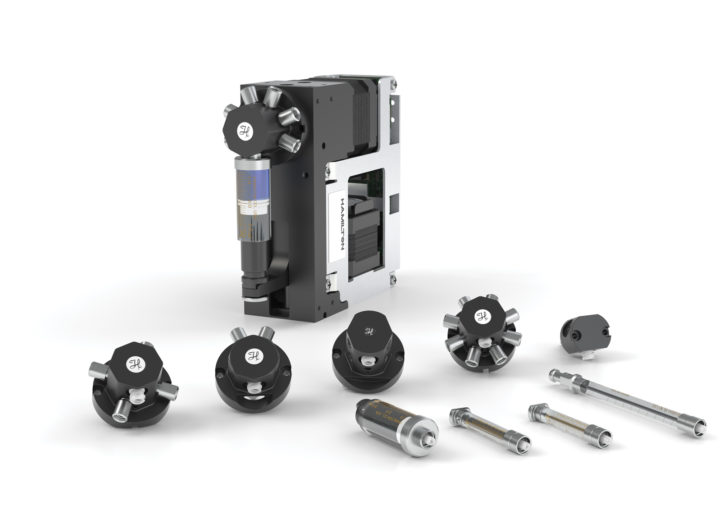

The PSD/4 is Hamilton's most compact syringe pump. The space saving design uses 30 mm half-height syringes and performs all standard liquid handling functions, including dispensing, serial dispensing and diluting.

  • 30 mm stroke length
  • Variety of mounting options — front, back, top, bottom, and side
  • Easy serviceability: Modular design allows quick plug and play replacement
  • Small footprint suits limited spaces
  • RoHS and CE compliant


Request a Manual or CAD file

  • PSD/4 Pumps

    Part # / Ref # Description
    54848-01 PSD/4 Standard
    97709-01 PSD/4 Smooth Flow
    99193-01 PSD/4 High Lift Force
    99194-01 PSD/4 High Valve Torque
    99195-01 PSD/4 High Valve Torque and Lift Force
  • PSD/4 Syringes

    Part # / Ref # Description
    5495-10 12.5 µL, Model 1702.5 TLLX SYR, Instrument Syringe
    5495-15 25 µL, Model 1705.5 TLLX SYR, Instrument Syringe
    5495-20 50 µL, Model 1710.5 TLLX SYR, Instrument Syringe
    5495-22 100 µL, Model 1725.1 TLLX SYR, Instrument Syringe
    5495-25 125 µL, Model 1725.5 TLLX SYR, Instrument Syringe
    5495-30 250 µL, Model 1750.5 TLLX SYR, Instrument Syringe
    5495-35 500 µL, Model 1001.5 TLLX SYR, Instrument Syringe
    5495-38 1 mL, Model 1002.1 TLLX SYR, Instrument Syringe
    5495-40 1.25 mL, Model 1001.25 TLL SYR, Instrument Syringe
    5495-45 2.5 mL, Model 1005.5 TLL SYR, Instrument Syringe
    5495-50 5 mL, Model 1010.5 TLL SYR, Instrument Syringe
    5495-55 12.5 mL, Model 1025.5 TLL SYR, Instrument Syringe
    8250-15 25 µL, Model 1705.5 TLL SYR, Long Life Instrument Syringe
    8250-20 50 µL, Model 1710.5 TLL SYR, Long Life Instrument Syringe
    8250-22 100 µL, Model 1725.1 TLL SYR, Long Life Instrument Syringe
    8250-25 125 µL, Model 1725.5 TLL SYR, Long Life Instrument Syringe
    8250-30 250 µL, Model 1750.5 TLL SYR, Long Life Instrument Syringe
    8250-35 500 µL, Model 1001.5 TLL SYR, Long Life Instrument Syringe
    8250-37 1 mL, Model 1002.1 TLL SYR, Long Life Instrument Syringe
    8250-40 1.25 mL, Model 1002.5 TLL SYR, Long Life Instrument Syringe
    8250-45 2.5 mL, Model 1005.5 TLL SYR, Long Life Instrument Syringe
    8250-50 5 mL, Model 1010.5 TLL SYR, Long Life Instrument Syringe
  • PSD/4 Valves

    Part # / Ref # Description
    57252-01 "Y" PTFE, HV, VALVE, PSD/4
    58889-01 VALVE, PTFE, HV, 3-3, PSD/4/6/8
    59943-01 VALVE, CERAMIC, HVCX 8-5 1025/1050
    7991-01 VALVE, CERAMIC, HVC, 3-5, PSD/4
    7992-01 VALVE, CERAMIC, HVCX, 4-5, PSD/4
    7993-01 VALVE, CERAMIC, HVCX, 8-5, PSD/4
    8063-01 VALVE, CERAMIC, HVC, 3-3, PSD/4
    8778-01 Y CERAMIC VALVE, PSD/4
    9234-01 VALVE, CERAMIC, 4-2, PSD/4
    9537-01 "Y" CTFE MANIFOLD VALVE BLOCK, PSD4
    9998-01 VALVE, CERAMIC, HVCX, 6-5, PSD4
  • PSD/4 Starter Kit

    Part # / Ref # Description
    57025-01 Demo Communication Cable for PSD/4, MVP/4 and PSD/6
    64316-04 Starter Kit for the PSD/4, MVP/4 and PSD/6

Syringe Pump Specifications

PSD/4 Type
Highest Resolution
(steps/stroke)
Fastest/Slowest
(time/stroke)
Size = D X H X W
(in)
Linear Force Capability
(lbf)
Valve Torque Capability
(in oz)
Weight
(lbs)
Standard
24,000
1 sec / 50 min
4.2 x 5 x 1.75
20
25
2.6
Smooth Flow
192,000
14 sec / 8 hour
4.2 x 5 x 1.75
22
25
2.7
High Lift Force
54,857
2.3 sec / 114.3 min
4.2 x 5 x 1.75
40
25
2.6
High Valve Torque
24,000
1 sec / 50 min
4.99 x 5 x 1.75
20
75
3.14
High Valve Torque and Lift Force
54,857
2.3 sec / 114.3 min
4.99 x 5 x 1.75
40
75
3.14
