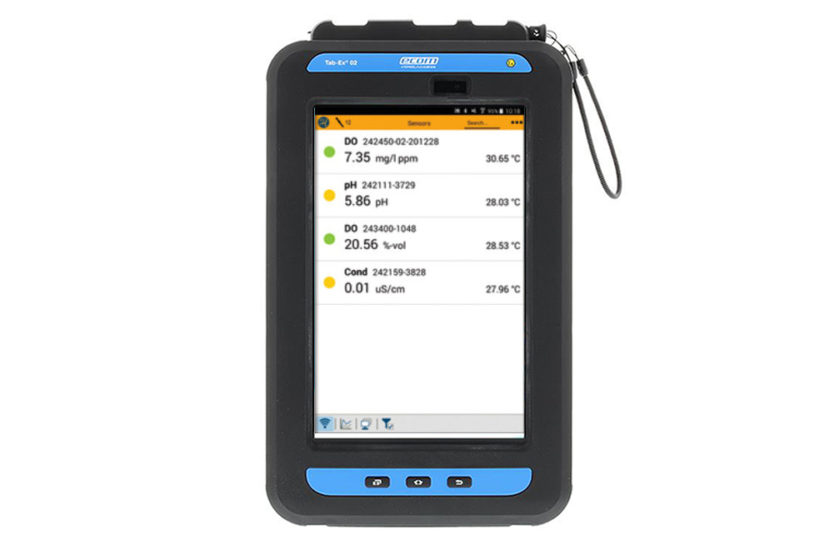

The Arc View Ex Mobile is a tablet designed to be used in hazardous environments. In combination with the ArcAir app it can be used to communicate in such an environment with optical dissolved oxygen sensors like VisiFerm mA or VisiFerm mA, VisiTrace mA or Arc sensors (none Ex).
|Dimensions (W x D x H)||162.1 x 256.0 x 33.3 mm|
|Digital Interface||Bluetooth 4.2|
|Memory||Micro-SD, supports up to 256 GB|
|Operating System||Android™ Oreo 8.1 or 9|
Rechargeable lithium ion battery 4450 mAh
USB powered (3.8 V)
|ATEX Approval||II 2G Ex db ia op is IIC T5 Gb; II 2G Ex ia op is IIIC T100°C Db|
|IECEx Approval||II 2G Ex db ia op is IIC T5 Gb; II 2G Ex ia op is IIIC T100°C Db|
|Operating Temperature Range||-20 to 50 °C|
|Protection Rating||IP 64|
Specification SheetArc View Ex Mobile
Catalog - Process AnalyticsDownload the Process Analytics sensor catalog to learn about the complete offering of Hamilton process sensors and accessories.
Brochure - Arc Intelligent SensorsArc Intelligent sensors offer a new way to connect to your process control system.
How do I communicate with an Arc sensor?Arc sensors have a built-in micro-transmitter within the sensor. ArcAir software is a powerful tool to access data, configure and calibrate the sensor. This can be done with Bluetooth wireless communication or with a wired connection directly to a PC.
Which wireless adapter do I need for my sensor?Hamilton makes two Bluetooth wireless adapters - Wi 1G and Wi 2G. The Wi 1G is designed for VisiFerm sensors using the ECS (nA) signal. The Wi 2G is better choice with Arc sensors.
How do I calibrate my Arc sensor?ArcAir Basic and Advanced software have built in calibration and report tools for Arc sensors. Connect the Arc sensor to ArcAir and utilize the step by step calibration instructions. Click to learn more about connecting Arc sensors to ArcAir software.
