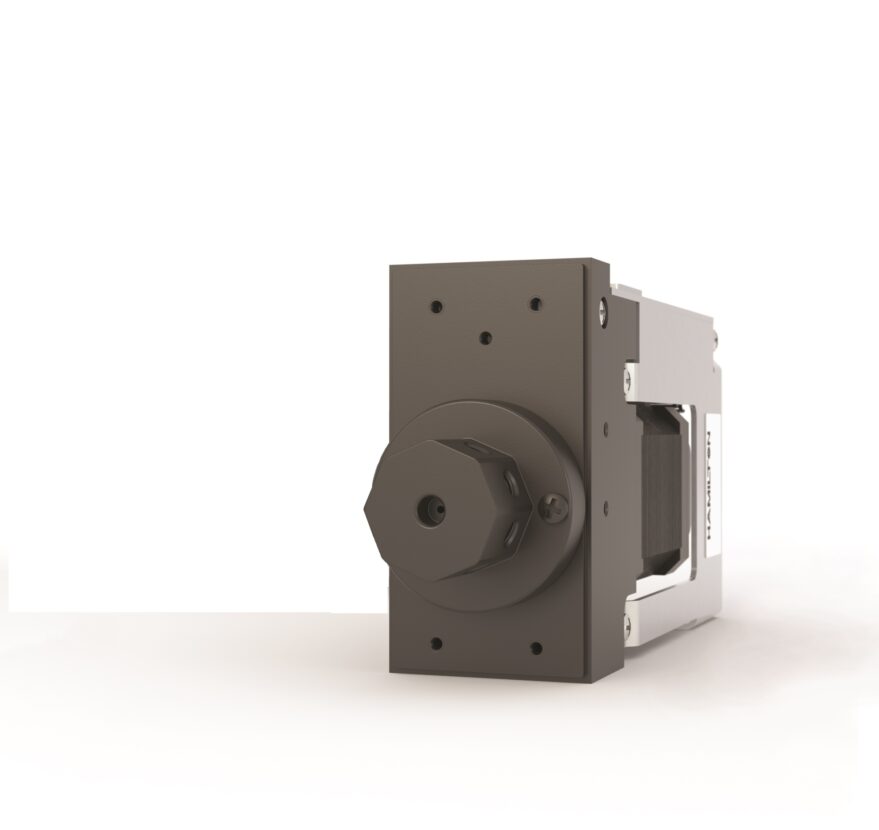

MVP/4 Standard

Found in these product categories:

Part/REF # 94747-01
  • (In Stock)
    (In Stock)
    Stock status is updated daily. For real-time status, please contact us.

Specifications

Fluid Path
Fluid Path
PTFE, CTFE, or ceramic
Weight
Weight
1.75 lbs (0.79 kg)
Power Requirements
Power Requirements
24 VDC, 1.7A max
Valve Drive Type
Valve Drive Type
Direct Drive DC stepper motor with 15 degree resolution and optical encoder.
Valve Drive Speed
Valve Drive Speed
250 ms per 120 degree rotation
Valve Drive Torque
Valve Drive Torque
25 (in oz)
Valve Fittings
Valve Fittings
¼-28

Additional specifications

Communication Interface
Communication Interface
RS-232, RS-485, CAN
Communication Protocol
Communication Protocol
Terminal and Standard
Baud Rate
Baud Rate
9600 or 38400 (RS-232, RS-485) and 100,000 or 125,000 (CAN)
Data Bits
Data Bits
8
Parity
Parity
None
Stop Bit
Stop Bit
1, Half duplex
Daisy Chain Length
Daisy Chain Length
Up to 16 syringe pumps or valve positioners
Operating Temp High
Operating Temp High
40 °C (105 °F)
Operating Temp Low
Operating Temp Low
15 °C (60 °F)
Operating Humidity
Operating Humidity
20% to 95%, non-condensing
Storage Temp High
Storage Temp High
65 °C (150 °F)
Storage Temp Low
Storage Temp Low
-20 °C (-4 °F)
Storage Humidity
Storage Humidity
20% to 95%, non-condensing
RoHS Compliant
RoHS Compliant
Yes
