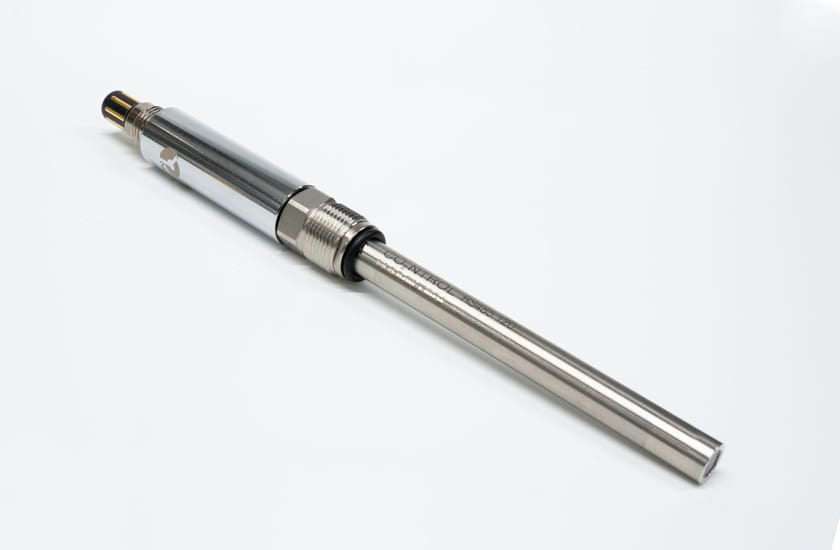

Hamilton's CO₂NTROL dissolved CO₂ sensor offers automated real-time control. Made specifically for bioproduction, this solid-state sensor enables increased titer and consistency when measuring dissolved carbon dioxide.
Product Specifications
| Process Connection |
Process Connection
PG13,5
|
|---|---|
| Wetted Parts |
Wetted Parts
Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer) VMQ (Silicone elastomer) See compliance details in Material Specification document |
| Electrical Connector |
Electrical Connector
VP8
|
| Parameter |
Parameter
DCO₂ (Dissolved CO2)
|
| Measuring Range |
Measuring Range
5 - 1000 mbar or 0.5 - 100 % vol or 7.5 - 1500 mg/L in liquid phase at 101.3 kPa and 25°C
|
| Electrolyte |
Electrolyte
None
|
| Accuracy at 25 °C |
Accuracy at 25 °C
±5 mbar (5-100 mbar); ±5% (> 100 mbar)
|
| CO₂ Consumption |
CO₂ Consumption
None
|
| Temperature Sensor |
Temperature Sensor
NTC 22 kOhm
|
| Configurable Values |
Configurable Values
Dissolved CO2 (dCO2): mbar, mmHg, hPa, %-vol, %-sat, µg/l ppb, mg/l ppm; Temperature: K, °C, °F
|
| Surface Quality of Steel |
Surface Quality of Steel
Ra < 0.4 µm (N5)
|
| Digital Interface |
Digital Interface
RS485 Modbus (max. 32 addresses)
|
| Baud Rate |
Baud Rate
4800, 9600, 19200, 38400, 57600, 115200 Bd
|
| Operating Voltage |
Operating Voltage
10 to 27 VDC
|
| Serial Number |
Serial Number
Yes
|
| Certificate |
Certificate
Yes, factory calibration with CO₂ certified gas
|
| Hygienic Design Approval |
Hygienic Design Approval
EHEDG approved. EL Class I. (Test executed with Hamilton hygienic socket REF 242545)
|
| ATEX Approval |
ATEX Approval
No
|
| IECEx Approval |
IECEx Approval
No
|
| Diameter |
Diameter
12 mm
|
| Autoclavable |
Autoclavable
Yes (140°C, 30-minute sterilization duration)
|
| Steam Sterilizable |
Steam Sterilizable
Yes (140°C, 30-minute sterilization duration)
|
| CIP |
CIP
Yes (3% NaOH, 90°C, 30-minute cleaning duration)
|
| Operating Temperature Range |
Operating Temperature Range
-10 to 140 °C; the sensor provides no CO₂ reading above 60 °C
|
| Pressure Range bar g |
Pressure Range bar g
-1 to 12 bar
|
| Protection Rating |
Protection Rating
IP68
|
| Required Flow |
Required Flow
None
|
Spec. Version A
