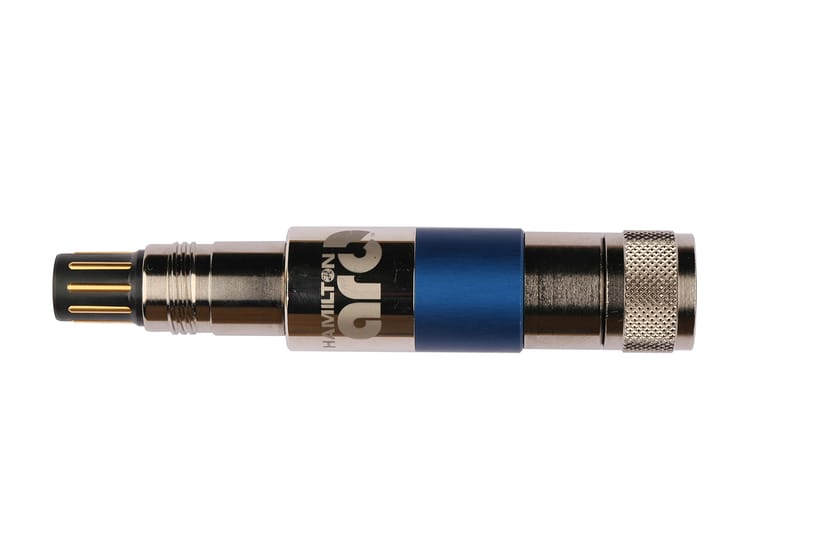

The Arc Module SU pH is designed for reliable pH measurement in single-use applications with the OneFerm pH sensor element.
Product Specifications
| Sensor Family |
Sensor Family
OneFerm
|
|---|---|
| Electrical Connector |
Electrical Connector
VP8 / VP8
|
| Parameter |
Parameter
pH
|
| Configurable Values |
Configurable Values
pH: pH, mV; Temperature: °C, K, °F
|
| Analog Interface 1 |
Analog Interface 1
4 to 20 mA, programmable
|
| Analog Interface 2 |
Analog Interface 2
4 to 20 mA, programmable
|
| Digital Interface |
Digital Interface
RS485 Modbus (max. 32 addresses)
|
| Baud Rate |
Baud Rate
4800, 9600, 19200, 38400, 57600, 115200 Bd
|
| Operating Voltage |
Operating Voltage
7 to 30 VDC max. 150 mW
|
| Serial Number |
Serial Number
Yes
|
| ATEX Approval |
ATEX Approval
No
|
| Autoclavable |
Autoclavable
No
|
| Steam Sterilizable |
Steam Sterilizable
No
|
| CIP |
CIP
No
|
| Gamma Irradiatable |
Gamma Irradiatable
No
|
| X-Ray irradiatable |
X-Ray irradiatable
No
|
| Operating Temperature Range |
Operating Temperature Range
0 to 60 °C
|
| Protection Rating |
Protection Rating
IP67
|
Spec. Version B
