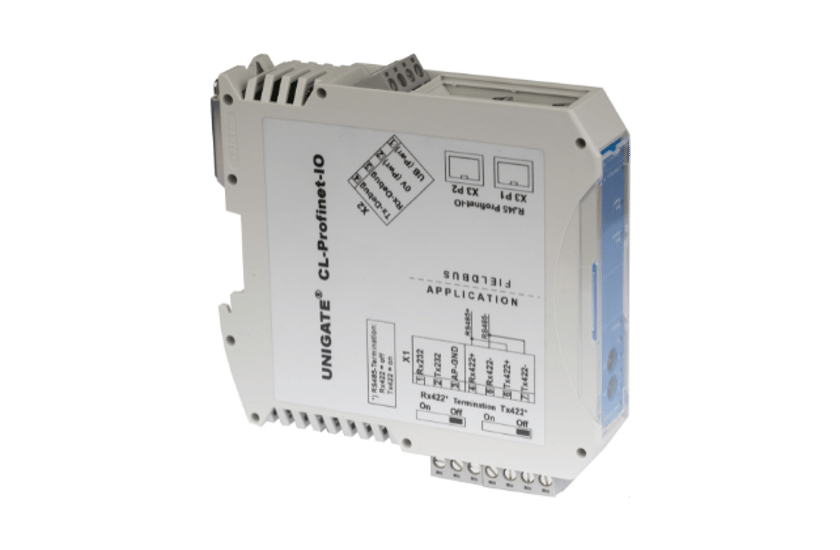

24VDC DIN rail mounted device that can be used with up to four Arc sensors and converts their Modbus output to Profinet.
Product Specifications
| Housing Material |
Housing Material
Polyamid
|
|---|---|
| Measuring Channels |
Measuring Channels
4
|
| Dimensions (W x D x H) |
Dimensions (W x D x H)
23 x 115 x 111 mm
|
| Sensor Compatibility |
Sensor Compatibility
pH, ORP, oDO, eDO, COND, UPW, DCO2, VCD, TCD Arc modbus sensors
|
| Digital Interface |
Digital Interface
Profinet
|
| Operating Voltage |
Operating Voltage
10 to 33 VDC
|
| Operating Temperature Range |
Operating Temperature Range
-40 to 85 °C
|
| Protection Rating |
Protection Rating
IP20
|
Spec. Version B
