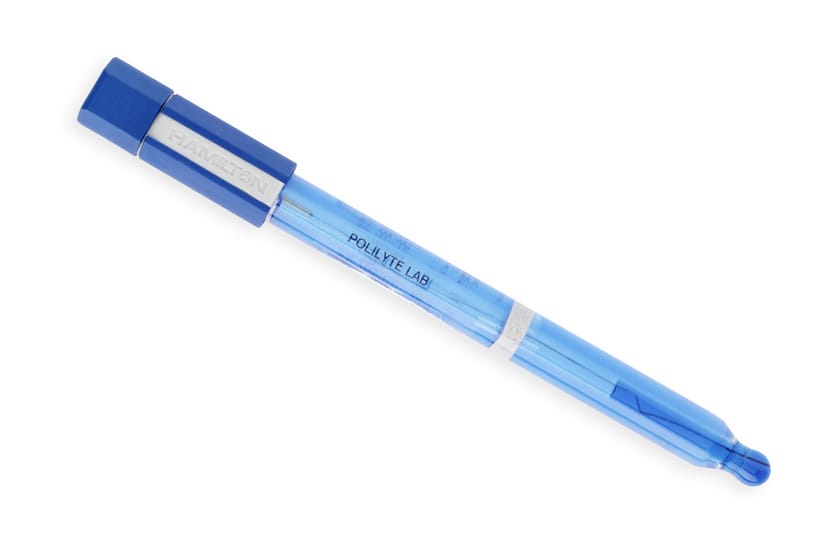

Hamilton's maintenance-free Polilyte Lab pH electrodes deliver laboratory-grade accuracy and stability. They feature a clog-free Single-Pore design for reliable measurements in various samples, including emulsions and suspensions.
Product Specifications
| Sensor Family |
Sensor Family
Polilyte Lab
|
|---|---|
| Wetted Parts |
Wetted Parts
GΙass
SAN (Polystyrene-Acrylonitrile) |
| pH Glass |
pH Glass
Hamilton Type HF Glass
|
| a-length |
a-length
120 mm
|
| Parameter |
Parameter
pH
|
| Measuring Range |
Measuring Range
pH 0 to 14
|
| Electrolyte |
Electrolyte
Polisolve
|
| Sensitivity |
Sensitivity
57 to 59 mV / pH at 25 °C
|
| Zero Point |
Zero Point
0 ± 20 mV
|
| pH Glass Resistance |
pH Glass Resistance
Moderate
|
| Membrane Shape |
Membrane Shape
Spherical
|
| Diaphragm |
Diaphragm
Single Pore
|
| Number of Diaphragms |
Number of Diaphragms
1
|
| Reference System |
Reference System
Hamilton Everef-B
|
| Minimum Immersion Depth |
Minimum Immersion Depth
15 mm
|
| Serial Number |
Serial Number
Yes
|
| Recommended Storage |
Recommended Storage
Hamilton Storage Solution or 3 M KCl
|
| Certificate |
Certificate
Yes, with measured values in Buffer pH 4.01 and pH 7.00
|
| Diameter |
Diameter
12 mm
|
| Operating Temperature Range |
Operating Temperature Range
-10 to 80 °C
|
| Pressure Range bar g |
Pressure Range bar g
Atmospheric pressure
|
Spec. Version B
