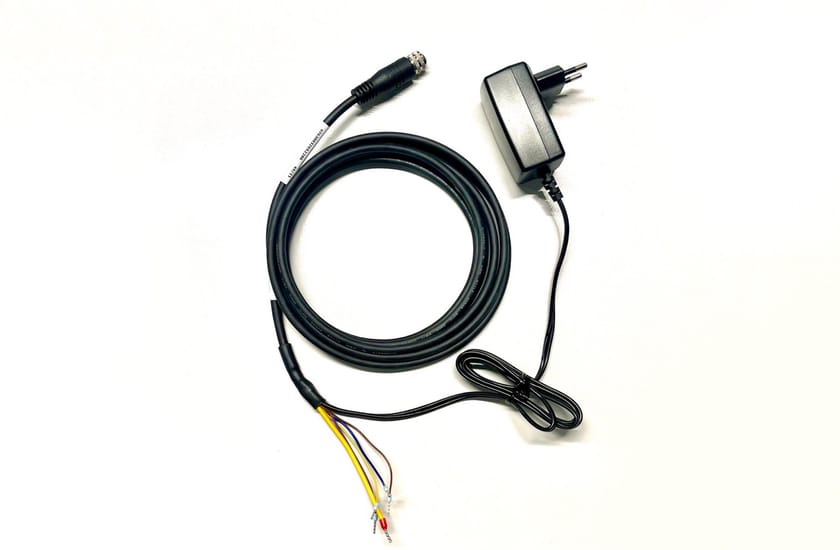

This power cable features an M12-8 pole connector for the Arc Wi 2G Adapter BT (Ref 243470) and an open end, facilitating an active 4-20 mA signal from Hamilton Arc sensors.
Product Specifications
| Electrical Connector |
Electrical Connector
M12-8 / Open End / Power Plug
|
|---|---|
| Power Supply |
Power Supply
110 / 220 VAC to 24 DC
|
| Shield |
Shield
Yes
|
| Diameter |
Diameter
6 mm
|
| Temperature Range |
Temperature Range
Maximum Temperature 80 °C
|
| Protection Rating |
Protection Rating
IP67
|
Spec. Version D
