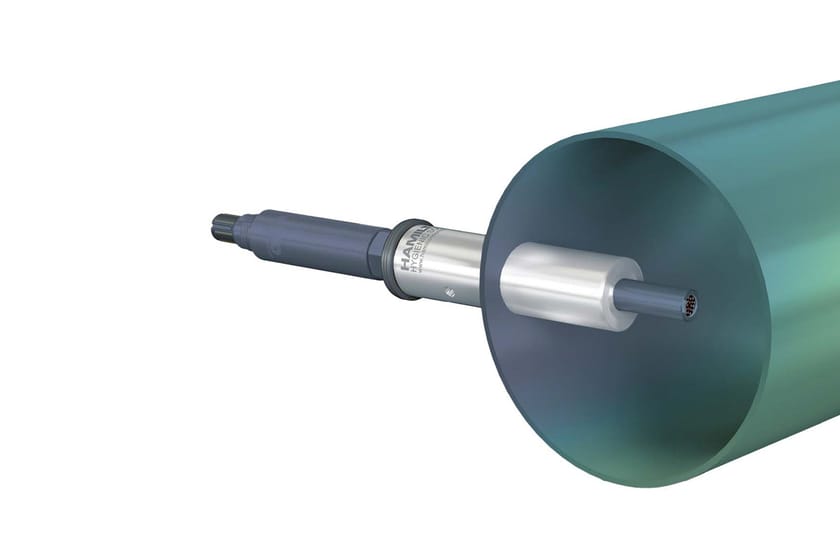

The Hygienic Sockets offer maximum safety while simultaneously reducing costs due to streamlined o-ring replacement. The size and design of the housings allows them to be used in a wide range of applications.
Product Specifications
| For Sensors with |
For Sensors with
120 mm, 12 mm, PG13,5
|
|---|---|
| Sensor Insertion Depth |
Sensor Insertion Depth
23.5 mm
|
| O-ring Material |
O-ring Material
EPDM
See compliance details in Material Specification document |
| Process Connection |
Process Connection
Welded
|
| Surface Quality of Steel |
Surface Quality of Steel
Ra < 0.4 µm (N5, electropolished)
|
| Housing Insertion Depth |
Housing Insertion Depth
0 to 55 mm
|
| Max. Diameter |
Max. Diameter
28 mm
|
| Min. Total Length |
Min. Total Length
107 mm
|
| Weight |
Weight
350 g
|
| Serial Number |
Serial Number
Yes
|
| Certificate |
Certificate
Yes, 3.1 certificate with heat number
|
| ATEX Approval |
ATEX Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db |
| IECEx Approval |
IECEx Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db |
| EAC Ex Approval |
EAC Ex Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db |
| UKEx Approval |
UKEx Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db |
| Diameter |
Diameter
28 mm
|
| Autoclavable |
Autoclavable
Yes
|
| Steam Sterilizable |
Steam Sterilizable
Yes
|
| CIP |
CIP
Yes
|
| Operating Temperature Range |
Operating Temperature Range
-10 to 140 °C
|
| Max. Pressure bar g |
Max. Pressure bar g
16 bar
|
| Product Family |
Product Family
Hygienic Socket
|
Spec. Version C
