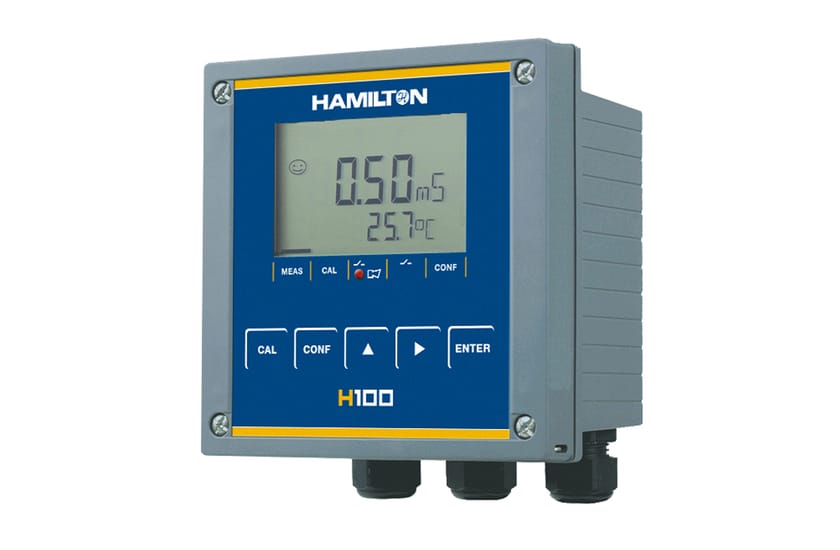

A traditional transmitter for pH, ORP, polarographic DO, and 2/4-pole conductivity. The H100 is a 4-wire design with dual 4-20 mA analog outputs and a relay for rinse and alarm functionality.
Product Specifications
| Housing Material |
Housing Material
PBT (polybutylene terephthalate)
|
|---|---|
| Dimensions (W x D x H) |
Dimensions (W x D x H)
144 x 105 x 144 mm
|
| Analog Output |
Analog Output
Two 0/4 - 20mA, Max. 10V, floating
|
| Power Supply |
Power Supply
24 to 230 V AC/DC (Cable not included)
|
| Regulatory Approvals |
Regulatory Approvals
Non-incendive: Class I, Div 2 Group A, B, C, D, T4 Ta = 55 °C; Type 2 // Class I, Zone 2 Group IIC, T4 Ta = 55 °C; Type 2
|
| Operating Humidity |
Operating Humidity
0 to 80% at temperatures up to 55 °C
|
| Protection Rating |
Protection Rating
IP65, NEMA 4X
|
| Display |
Display
LCD, 7-segment with icons
|
| Measuring Error |
Measuring Error
< 1 % meas. Value + 0.4 µS x c
|
| Temperature Input |
Temperature Input
Pt 100, Pt 1000, NTC 30 kOhm
|
| Temperature Measuring Range |
Temperature Measuring Range
-20 to 150 °C
|
| Temperature Resolution |
Temperature Resolution
0.1 °C
|
| Relay Output |
Relay Output
3A max, < 250 VAC/30 VDC, Configurable for alarm or rinse function
|
Spec. Version B
