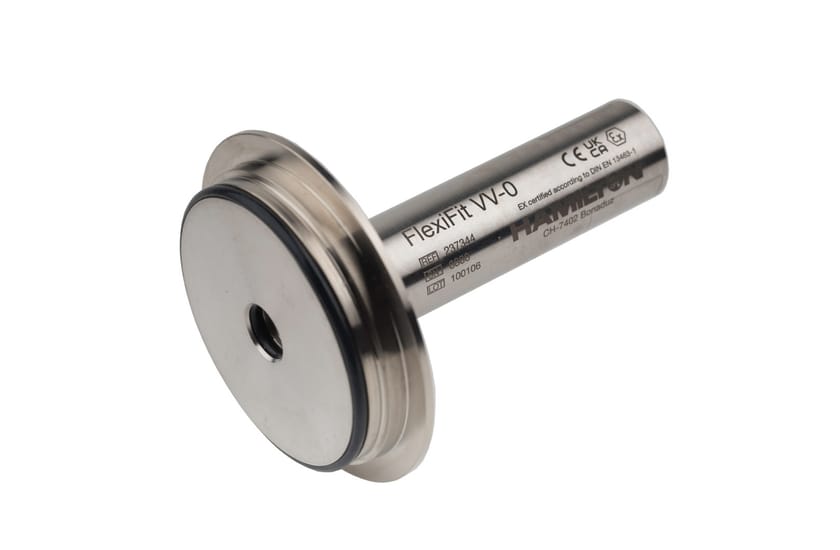

FlexiFit housings accommodate 120mm sensors across diverse industries with various process connections. Featuring EPDM O-rings and an electropolished surface (Ra < 0.4 μm), they are ideal for hygienic processes and support autoclavation, CIP, and SIP.
Product Specifications
| Wetted Parts |
Wetted Parts
Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
|---|---|
| For Sensors with |
For Sensors with
120 mm, 12 mm, PG13,5
|
| Sensor Insertion Depth |
Sensor Insertion Depth
26 mm incl. sensor
|
| Sensor Compatibility |
Sensor Compatibility
Suitable for all sensor parameters
|
| Process Connection |
Process Connection
Tuchenhagen Varivent® DN50/40
|
| Surface Quality of Steel |
Surface Quality of Steel
Ra < 0.4 µm (N5, electropolished)
|
| Max. Diameter |
Max. Diameter
85 mm
|
| Weight |
Weight
950 g
|
| Serial Number |
Serial Number
Yes
|
| Certificate |
Certificate
Yes, 3.1 certificate with heat number
|
| ATEX Approval |
ATEX Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db |
| IECEx Approval |
IECEx Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db |
| EAC Ex Approval |
EAC Ex Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db |
| UKEx Approval |
UKEx Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db |
| Autoclavable |
Autoclavable
Yes
|
| Steam Sterilizable |
Steam Sterilizable
Yes
|
| CIP |
CIP
Yes
|
| Operating Temperature Range |
Operating Temperature Range
-10 to 140 °C
|
| Max. Pressure bar g |
Max. Pressure bar g
16 bar
|
| Sensor Protection |
Sensor Protection
No
|
| Product Family |
Product Family
FlexiFit
|
Spec. Version B
