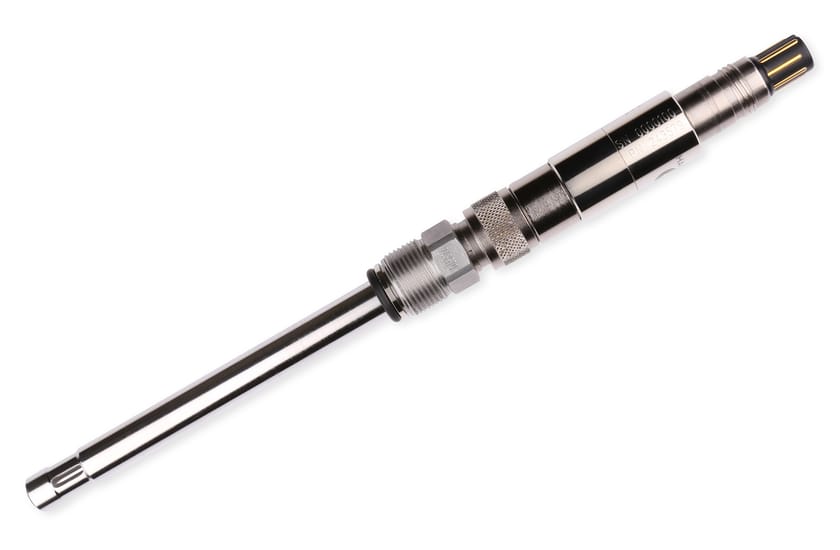

Conducell UPW Arc sensor: industry-leading accuracy and sensitivity for pharmaceutical pure/ultra-pure water. USP 645, EP, JP, FDA compliant.
Product Specifications
| Process Connection |
Process Connection
PG13,5
|
|---|---|
| Sensor Family |
Sensor Family
Conducell UPW
|
| Wetted Parts |
Wetted Parts
Stainless Steel 1.4435
PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
| Electrical Connector |
Electrical Connector
VP8
|
| Parameter |
Parameter
Conductivity (2-pole)
|
| Sensor Output |
Sensor Output
Arc: Modbus, 4 to 20 mA
|
| Measuring Range |
Measuring Range
0.01 to 1500 µS/cm
|
| Accuracy at 25 °C |
Accuracy at 25 °C
± 3 %
|
| Cell Constant |
Cell Constant
< 0.1 / cm
|
| Temperature Sensor |
Temperature Sensor
NTC 22 kOhm
|
| Configurable Values |
Configurable Values
Conductivity: µS/cm, mS/cm; Temperature: °C, °F, K
|
| Surface Quality of Steel |
Surface Quality of Steel
Ra < 0.4 µm (N5, electropolished)
|
| Analog Interface 1 |
Analog Interface 1
4 to 20 mA for conductivity, programmable
|
| Analog Interface 2 |
Analog Interface 2
4 to 20 mA for Temp., programmable
|
| Analog Interface 1 and 2 |
Analog Interface 1 and 2
Galvanically not isolated; pulse width modulation 3.5 kHz
|
| Digital Interface |
Digital Interface
RS485 Modbus (max. 32 addresses)
|
| Baud Rate |
Baud Rate
4800, 9600, 19200, 38400, 57600, 115200 Bd
|
| Operating Voltage |
Operating Voltage
7 to 30 VDC max. 150 mW
|
| Serial Number |
Serial Number
Yes
|
| Certificate |
Certificate
Yes, with nominal and actual cell constant
|
| ATEX Approval |
ATEX Approval
No
|
| IECEx Approval |
IECEx Approval
No
|
| Autoclavable |
Autoclavable
Yes, max. Temperature 130 °C
|
| Steam Sterilizable |
Steam Sterilizable
Yes, max. Temperature 140 °C
|
| CIP |
CIP
Yes
|
| Operating Temperature Range |
Operating Temperature Range
Analog interface: 0 to 110 °C; Digital interface: 0 to 130 °C
|
| Pressure Range bar g |
Pressure Range bar g
0 to 10 bar g (130 °C)
|
| Max. Pressure bar g |
Max. Pressure bar g
10 bar g (130 °C)
|
Spec. Version C
