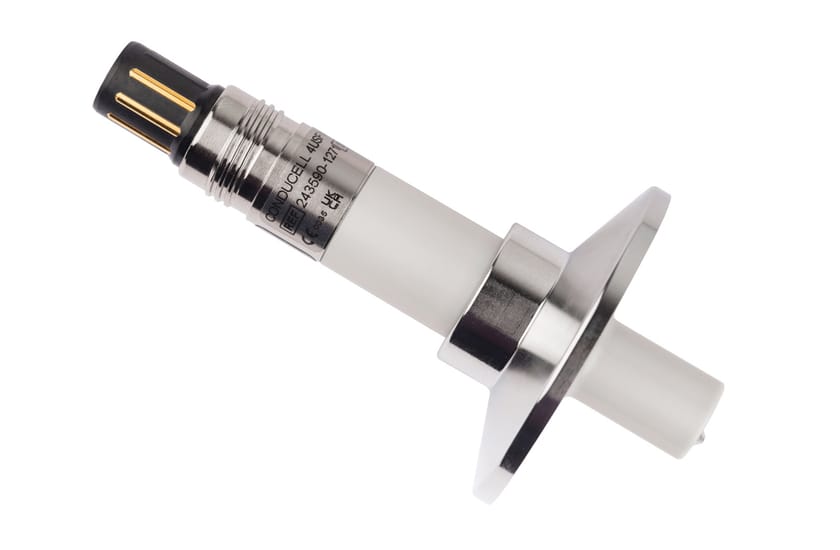

This FDA-certified 4-pole conductivity sensor with a VP6 connector and Triclamp 1.5" process connection is designed for hygienic applications, offering resistance to CIP, SIP, and autoclaving. It provides linear measurements across a broad conductivity range and features wetted parts including Stainless Steel 1.4435 and PEEK.
Product Specifications
| Electrical Connector |
Electrical Connector
VP6
|
|---|---|
| a-length |
a-length
21 mm
|
| Measuring Range |
Measuring Range
1 µS/cm to 500 mS/cm
|
| Cell Constant |
Cell Constant
0.36 /cm
|
| Temperature Sensor |
Temperature Sensor
Pt1000
|
| Process Connection |
Process Connection
Triclamp 1.5"
|
| Surface Quality of Steel |
Surface Quality of Steel
Ra < 0.4 µm (N5, electropolished)
|
| Serial Number |
Serial Number
Yes
|
| Certificate |
Certificate
Yes, with nominal and actual cell constant
|
| ATEX Approval |
ATEX Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
|
| IECEx Approval |
IECEx Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
|
| Diameter |
Diameter
12 mm
|
| Autoclavable |
Autoclavable
Yes
|
| Steam Sterilizable |
Steam Sterilizable
Yes
|
| CIP |
CIP
Yes
|
| Operating Temperature Range |
Operating Temperature Range
-20 to 150 °C
|
| Pressure Range bar g |
Pressure Range bar g
0 to 20 bar (135 °C), 0 to 10 bar (150 °C)
|
Spec. Version A
