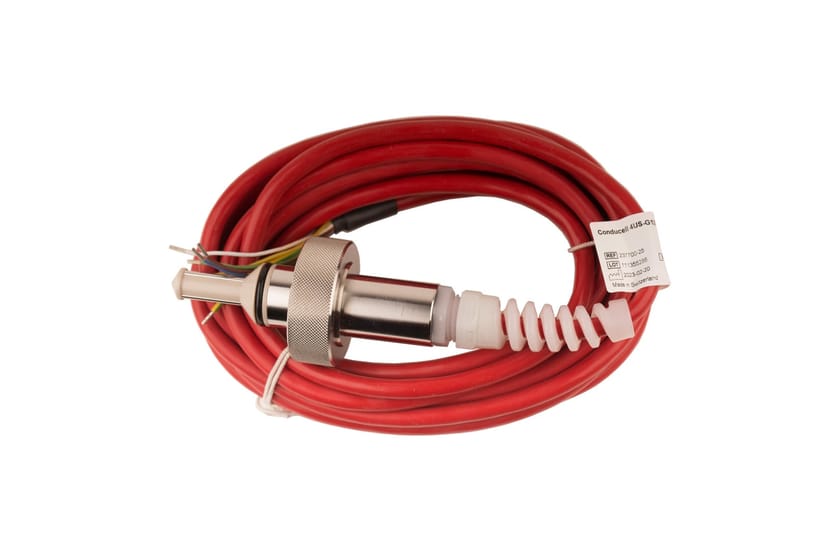

The Conducell 4US is a 4-pole conductivity sensor with a fixed 5m cable and a G 1¼ inch (Ingold) process connection. 1 Ideal for applications with fluctuating conductivity, this sensor features stainless steel electrodes and is compatible with transmitters like the H100 for reliable measurements from 0.1 µS/cm to 500 mS/cm.
Product Specifications
| Measurement Principle |
Measurement Principle
4 Pole Contacting
|
|---|---|
| Electrical Connector |
Electrical Connector
5 m Fix Cable / Open End
|
| Measuring Range |
Measuring Range
0.1 µS/cm to 500 mS/cm
|
| O-ring Position (OP) |
O-ring Position (OP)
22 to 55 mm
|
| Cell Constant |
Cell Constant
0.147 /cm
|
| Temperature Sensor |
Temperature Sensor
Pt1000
|
| Surface Quality of Steel |
Surface Quality of Steel
Ra < 0.4 µm (N5, electropolished)
|
| Wetted Parts |
Wetted Parts
Stainless Steel 1.4435
PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
| Serial Number |
Serial Number
Yes
|
| Certificate |
Certificate
Yes, with nominal and actual cell constant
|
| ATEX Approval |
ATEX Approval
II 1/2 G Ex ia IIB T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
|
| IECEx Approval |
IECEx Approval
II 1/2 G Ex ia IIB T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
|
| Autoclavable |
Autoclavable
No
|
| Steam Sterilizable |
Steam Sterilizable
Yes
|
| CIP |
CIP
Yes
|
| Operating Temperature Range |
Operating Temperature Range
-20 to 135 °C
|
| Pressure Range bar g |
Pressure Range bar g
0 to 6 bar
|
Spec. Version B
