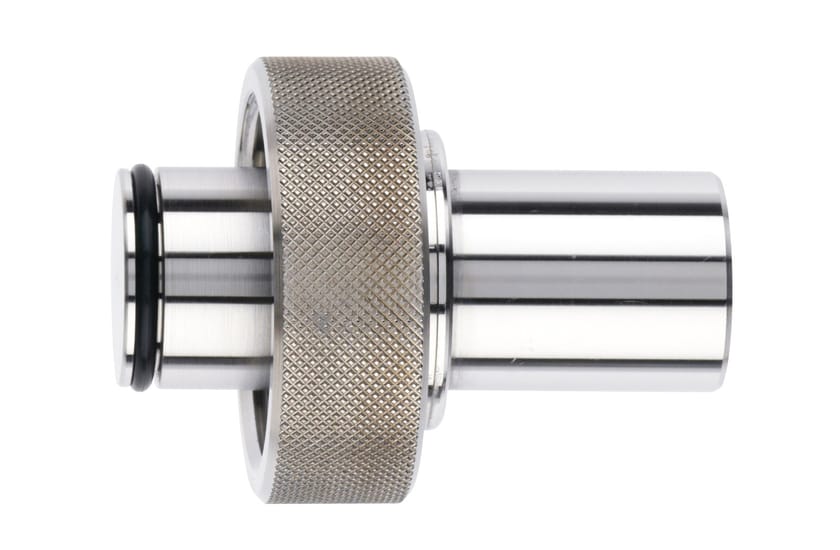

This blind plug effectively seals unused G 1 ¼ (Ingold) weld-in safety sockets, preventing ingress of contaminants and maintaining the integrity of your system. Constructed from durable materials for reliable and long-lasting performance.
Product Specifications
| Process Connection |
Process Connection
G 1¼ inch (Ingold)
|
|---|---|
| Max. Diameter |
Max. Diameter
50 mm
|
| Max. Total Length |
Max. Total Length
67 mm
|
| Serial Number |
Serial Number
Yes
|
| Certificate |
Certificate
Yes, 3.1 certificate with heat number
|
| ATEX Approval |
ATEX Approval
Conform to DIN EN 13463-1
|
| Diameter |
Diameter
25 mm
|
| Autoclavable |
Autoclavable
Yes
|
| Steam Sterilizable |
Steam Sterilizable
Yes
|
| CIP |
CIP
Yes
|
| Operating Temperature Range |
Operating Temperature Range
-30 to 160 °C
|
| Max. Pressure bar g |
Max. Pressure bar g
50 bar
|
| Product Family |
Product Family
Blind Plugs
|
| Wetted Part |
Wetted Part
EPDM (Ethylene propylene elastomer), see compliance details in Material Specification Document)
|
Spec. Version B
