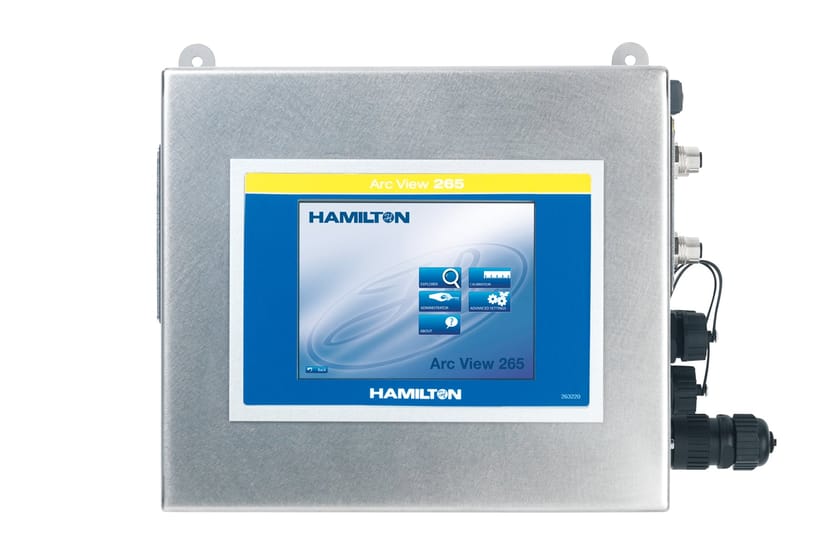

The Arc View is a compact controller that can be connected to up to two Incyte (Pre-Amp) or Dencytee sensors. It is designed for streamlined monitoring, data collection in bioprocessing as well as real-time sensor data visualization.
Product Specifications
| Housing Material |
Housing Material
Stainless Steel
|
|---|---|
| Analog Output |
Analog Output
Optional AUX to Analog Output Box 4-20 mA
|
| Digital Interface |
Digital Interface
Ethernet connection with RJ45 (OPC XML-DA)
RS485 Modbus (max. 32 addresses) USB 2.0 |
| Operating Voltage |
Operating Voltage
24 VDC
|
| Power Supply |
Power Supply
24 VDC; 2.5 A
|
| Operating Humidity |
Operating Humidity
0 to 80 %
|
| Operating Temperature Range |
Operating Temperature Range
-10 to 45 °C
|
Spec. Version B
