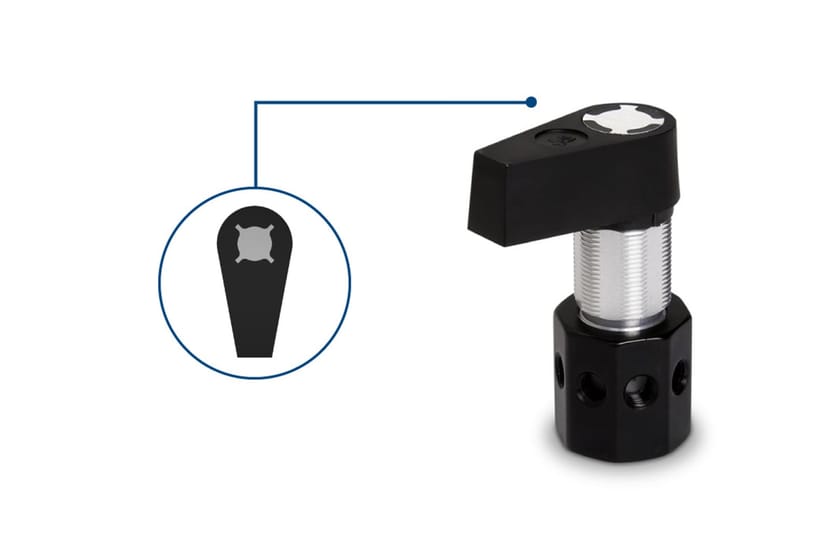

Available with various port configurations and materials, Manual Valves are a cost-effective solution for accurate, reliable and chemically resistant fluid handling needs where automation is not required. These valves ideal for a wide range of laboratory, analytical, and industrial applications.
Product Specifications
| Valve Model |
Valve Model
8-7
|
|---|---|
| Valve Model Description |
Valve Model Description
Loop Flow Path 8-ports
|
| Fluid Path |
Fluid Path
PTFE/CTFE
|
| Valve Size |
Valve Size
HVX
|
| Nominal Port Diameter |
Nominal Port Diameter
0.040 inch (1 mm)
|
| Valve Outer Body Dimension |
Valve Outer Body Dimension
1 inch (25.4 mm)
|
| Housing Material |
Housing Material
Aluminum
|
| Fluid Path Dead Volume |
Fluid Path Dead Volume
6.5 µL
|
| Actuated |
Actuated
Manual
|
| Break Away Torque |
Break Away Torque
65 in oz. (455 mNm)
|
| Panel Mounting |
Panel Mounting
Yes
|
| Panel Thickness |
Panel Thickness
0.625 inch (15.9 mm)
|
| Thread Depth |
Thread Depth
0.219 inch (5.6 mm)
|
| Threaded Connection |
Threaded Connection
¼-28
|
| Operating Temp High |
Operating Temp High
38 °C (100 °F)
|
| Operating Temp Low |
Operating Temp Low
-12 °C (10 °F)
|
| Operating Pressure |
Operating Pressure
0 to 100 psig (0 to 6.9 bar)
|
| Storage Temp High |
Storage Temp High
38 °C (100 °F)
|
| Storage Temp Low |
Storage Temp Low
-18 °C (0 °F)
|
