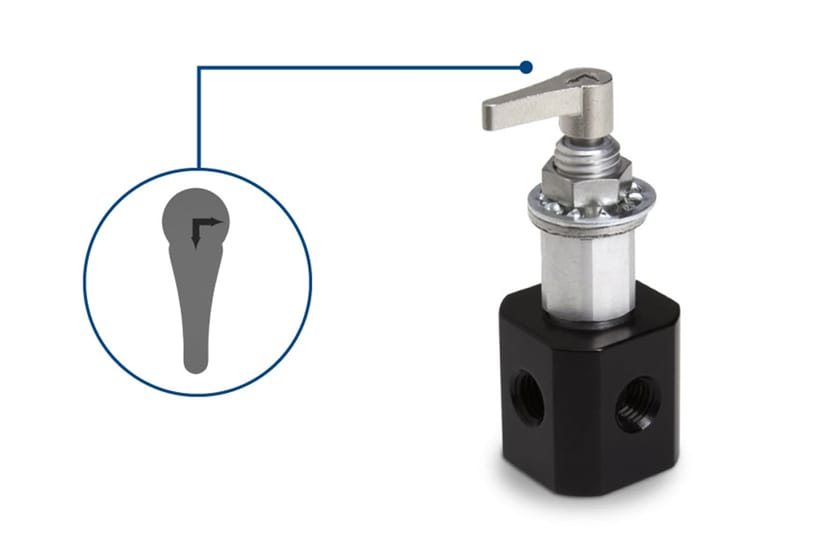

Featuring four 1/4"-28 flat-bottom ports positioned 90° apart, this compact and chemically resistant plug valve offers manual flow control between any two adjacent ports. HVP valves can be panel mounted, allowing for custom installation into control boards or instrumentation.
Product Specifications
| Valve Model |
Valve Model
4-2
|
|---|---|
| Valve Model Description |
Valve Model Description
90° Flow Path 4-ports
|
| Fluid Path |
Fluid Path
PTFE/CTFE
|
| Valve Size |
Valve Size
HVP
|
| Nominal Port Diameter |
Nominal Port Diameter
0.059 inch (1.5 mm)
|
| Valve Outer Body Dimension |
Valve Outer Body Dimension
0.75 inch (19.1 mm)
|
| Housing Material |
Housing Material
Aluminum
|
| Fluid Path Dead Volume |
Fluid Path Dead Volume
19 µL
|
| Actuated |
Actuated
Manual
|
| Break Away Torque |
Break Away Torque
15 oz-in (105.9 mNm)
|
| Panel Mounting |
Panel Mounting
Yes
|
| Panel Thickness |
Panel Thickness
0.150 inch (3.8 mm)
|
| Thread Depth |
Thread Depth
0.219 inch (5.6 mm)
|
| Threaded Connection |
Threaded Connection
¼-28
|
| Operating Temp High |
Operating Temp High
38 °C (100 °F)
|
| Operating Temp Low |
Operating Temp Low
-12 °C (10 °F)
|
| Operating Pressure |
Operating Pressure
0 to 100 psig (0 to 6.9 bar)
|
| Storage Temp High |
Storage Temp High
38 °C (100 °F)
|
| Storage Temp Low |
Storage Temp Low
-18 °C (0 °F)
|
