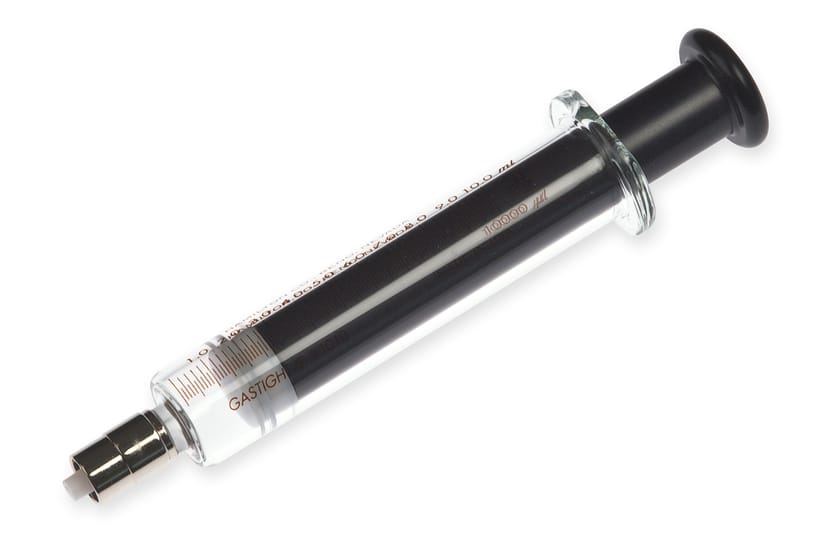

Hamilton's 1000 series, 10 mL, Gastight 1010 Luer Lock (TLL) Instrument Syringe, Model 1010, is designed to dispense both liquids and gases. It features a polymer plunger tip which creates a leak-free seal and wipes the interior of the syringe barrel free of sample.
Product Specifications
| Volume |
Volume
10 mL
|
|---|---|
| Syringe Type |
Syringe Type
Gastight
|
| Syringe Series |
Syringe Series
1000
|
| Termination |
Termination
PTFE Luer Lock (TLL)
|
| Needle |
Needle
Metal (N) or Kel-F
|
| Gauge |
Gauge
No Needle Included
|
| Point Style |
Point Style
No Needle Included
|
| Needle Length |
Needle Length
No Needle Included
|
| Plunger Style |
Plunger Style
X-Style
|
| Fluid Path |
Fluid Path
Borosilicate glass, PTFE
|
| Autoclavable |
Autoclavable
Yes
|
| Gas Sterilizable |
Gas Sterilizable
Yes
|
| Pressure |
Pressure
200 psig (13.8 bar)
|
| Maximum Operating Temperature |
Maximum Operating Temperature
80°C / 176°F
|
| Minimum Operating Temperature |
Minimum Operating Temperature
10°C / 50°F
|
| Barrel Inner Diameter |
Barrel Inner Diameter
0.574 inches (14.6 mm)
|
| Barrel Outer Diameter |
Barrel Outer Diameter
0.695 inches (17.7 mm)
|
| Std Needle Dead Volume |
Std Needle Dead Volume
N/A
|
| Sales Quantity |
Sales Quantity
1 syringe per pack
|
| Stroke Length |
Stroke Length
60 mm
|
| Syringe Model Number |
Syringe Model Number
1010
|
