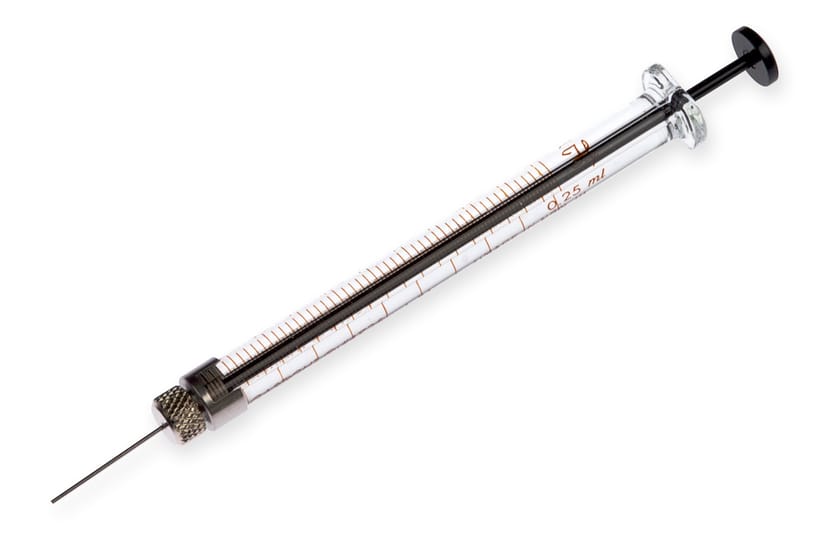

Hamilton's 1700 series, 250 µL, Gastight #1725 Large Removable Needle Syringe, Model 1725, is designed for use with Valco VISP-1 HPLC injection valves. Ideal for liquids and gas sampling.
Product Specifications
| Volume |
Volume
250 µL
|
|---|---|
| Syringe Type |
Syringe Type
Gastight
|
| Syringe Series |
Syringe Series
1700
|
| Termination |
Termination
Removable Needle (RN)
|
| Needle |
Needle
Large RN
|
| Gauge |
Gauge
22s gauge
|
| Point Style |
Point Style
3: Blunt
|
| Needle Length |
Needle Length
0.75 inches (19.0 mm)
|
| Plunger Style |
Plunger Style
Standard Plunger
|
| Fluid Path |
Fluid Path
SST, Borosilicate glass, PTFE
|
| Autoclavable |
Autoclavable
Yes
|
| Gas Sterilizable |
Gas Sterilizable
Yes
|
| Pressure |
Pressure
500 psig (34.5 bar)
|
| Maximum Operating Temperature |
Maximum Operating Temperature
80°C / 176°F
|
| Minimum Operating Temperature |
Minimum Operating Temperature
10°C / 50°F
|
| Barrel Inner Diameter |
Barrel Inner Diameter
0.091 inches (2.30 mm)
|
| Barrel Outer Diameter |
Barrel Outer Diameter
0.305 inches (7.75 mm)
|
| Needle Inner Diameter |
Needle Inner Diameter
0.0059 inches (0.15 mm)
|
| Needle Outer Diameter |
Needle Outer Diameter
0.0283 inches (0.72 mm)
|
| Std Needle Dead Volume |
Std Needle Dead Volume
0.42 μL
|
| Sales Quantity |
Sales Quantity
1 syringe per pack
|
| Syringe Model Number |
Syringe Model Number
1725
|
