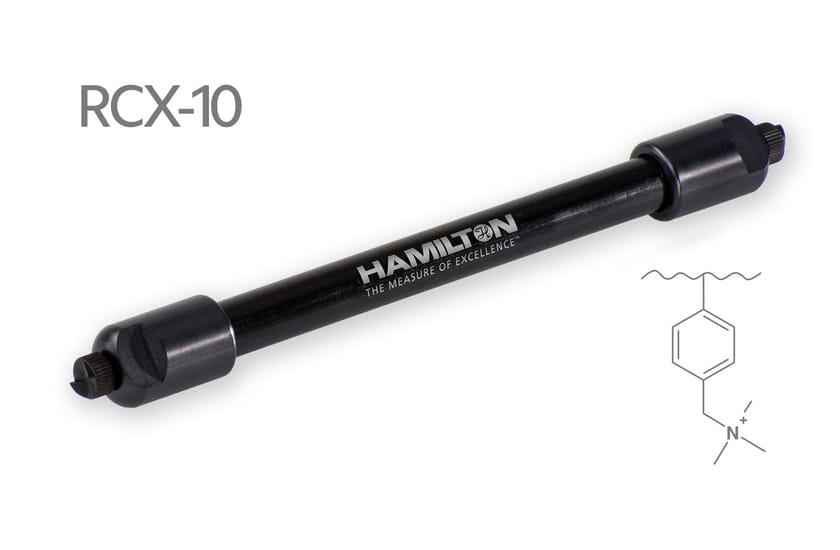

Hamilton's RCX-10 HPLC Column (7 µm 4.6 x 250 mm PEEK) are designed with high exchange capacity for quality carbohydrate separation. Isocratic or gradient separations can be used depending on the complexity of the mixture.
Product Specifications
| Separation Mode |
Separation Mode
Anion Exchange
|
|---|---|
| Stationary Phase |
Stationary Phase
RCX-10
|
| Format |
Format
HPLC Column
|
| Hardware Inner Diameter |
Hardware Inner Diameter
4.6 mm
|
| Hardware Length |
Hardware Length
250 mm
|
| Particle Size |
Particle Size
7 µm
|
| USP Classification |
USP Classification
USP L47
|
| Packing Material Type |
Packing Material Type
PSDVB/Trimethylammonium
|
| Pore Size |
Pore Size
100 Å
|
| Particle Surface Area (m2/g) |
Particle Surface Area (m2/g)
358
|
| Pore Volume (cm3/g) |
Pore Volume (cm3/g)
0.624
|
| Hardware Material |
Hardware Material
PEEK
|
| Max Pressure |
Max Pressure
5,000 psi
|
| Exchange Capacity |
Exchange Capacity
0.35 meq/gm
|
| Exchange Capacity/Column |
Exchange Capacity/Column
0.700 meq/column
|
| Mobile Phase Limits |
Mobile Phase Limits
pH 1-13, 0-100% aqueous, organic modifier
|
| Buffer Strength |
Buffer Strength
0.0-1.0N
|
| Temp Limits |
Temp Limits
5-30°C
|
| Restoration |
Restoration
Flush with 50 mL 0.1 N sodium hydroxide
|
| Compound Classification |
Compound Classification
Carbohydrates
|
| UOM |
UOM
1 EACH
|
