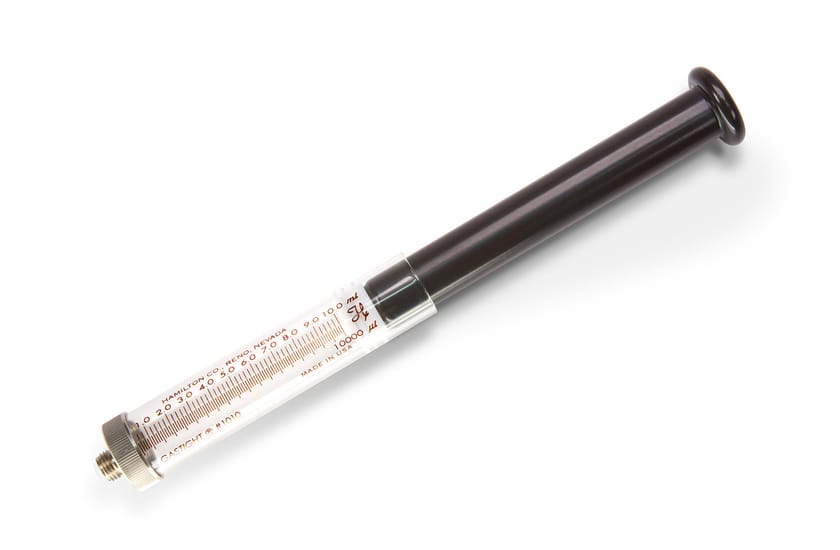

Hamilton's 1000 series, Gastight, Bubble Free Prime #1010 Bubble Free Prime (BFP, 5/16"-28) Syringe, Model 1010, features a conical plunger tip which extends through the threaded termination of the syringe and into the valve.
Product Specifications
| Volume |
Volume
10 mL
|
|---|---|
| Syringe Type |
Syringe Type
Gastight, Bubble Free Prime
|
| Syringe Series |
Syringe Series
1000
|
| Termination |
Termination
Bubble Free Prime™ (BFP, 5/16"-28)
|
| Needle |
Needle
No Needle Available
|
| Plunger Style |
Plunger Style
X-Style
|
| Fluid Path |
Fluid Path
Borosilicate glass, PTFE, PFA
|
| Autoclavable |
Autoclavable
No
|
| Gas Sterilizable |
Gas Sterilizable
Yes
|
| Pressure |
Pressure
200 psig (13.8 bar)
|
| Maximum Operating Temperature |
Maximum Operating Temperature
80°C / 176°F
|
| Minimum Operating Temperature |
Minimum Operating Temperature
10°C / 50°F
|
| Barrel Inner Diameter |
Barrel Inner Diameter
0.574 inches (14.6 mm)
|
| Barrel Outer Diameter |
Barrel Outer Diameter
0.695 inches (17.7 mm)
|
| Sales Quantity |
Sales Quantity
1 syringe per pack
|
| Plunger Tip Material |
Plunger Tip Material
PTFE
|
| Stroke Length |
Stroke Length
60 mm
|
| Syringe Model Number |
Syringe Model Number
1010
|
