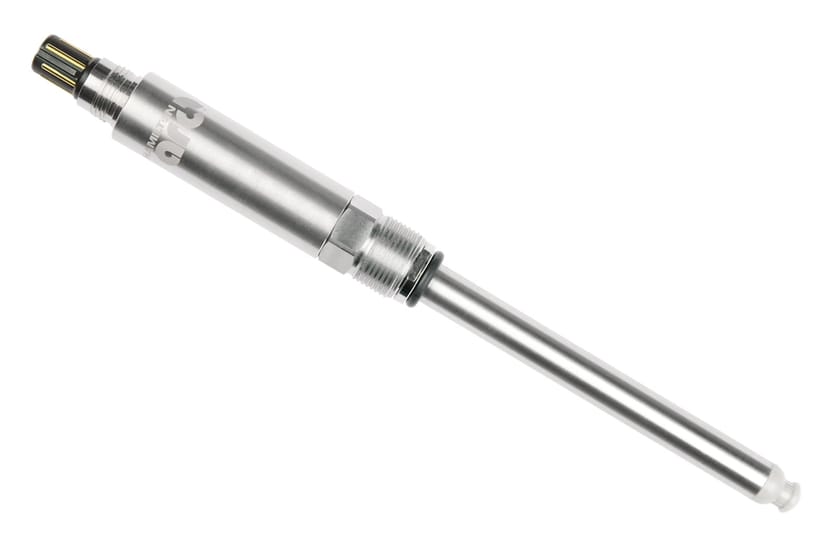

Incyte Arc Expert sensors enable real-time, in-situ measurement of viable cells, making it possible to detect events and respond in real time without increased off-line sampling.
Product Specifications
| Process Connection |
Process Connection
PG13,5
|
|---|---|
| Wetted Parts |
Wetted Parts
Platinum
Stainless Steel 1.4435 PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) |
| Electrical Connector |
Electrical Connector
VP8
|
| Parameter |
Parameter
Viable Cell Density
|
| Sensor Output |
Sensor Output
Arc: Modbus
|
| Measuring Range |
Measuring Range
0 to 700 pF/cm, equivalent to 5 x 10^5 to 8 x 10^9 cells/mL (mammalian)
|
| Precision at 25 °C |
Precision at 25 °C
Permittivity (at 1 MHz): ± 1 pF or ± 1 %
Whichever value is greater over the entire measuring range |
| Accuracy at 25 °C |
Accuracy at 25 °C
Conductivity (at 0 pF): ± 25 µS or ± 1 %
Whichever value is greater over the entire measuring range |
| Temperature Sensor |
Temperature Sensor
Yes
|
| Configurable Values |
Configurable Values
VCD, Conductivity, Temperature
|
| O-ring Material |
O-ring Material
EPDM (Ethylene propylene elastomer)
|
| Surface Quality of Steel |
Surface Quality of Steel
Ra < 0.4 µm (N5)
|
| Digital Interface |
Digital Interface
RS485 Modbus (max. 32 addresses)
|
| Baud Rate |
Baud Rate
19200, 38400, 57600,115200 Bd
|
| Operating Voltage |
Operating Voltage
24 V (± 10 %)
|
| Serial Number |
Serial Number
Yes
|
| Certificate |
Certificate
Yes
|
| Diameter |
Diameter
12 mm
|
| Autoclavable |
Autoclavable
Yes (30-minute sterilization duration, for Revision 00: 130°C, for Revision ≥ 01: 140°C)
|
| Steam Sterilizable |
Steam Sterilizable
Yes (140°C, 30-minute sterilization duration)
|
| CIP |
CIP
Yes (3% NaOH, 90°C, 30-minute cleaning duration)
|
| Operating Temperature Range |
Operating Temperature Range
0 to 60 °C
|
| Conductivity Range |
Conductivity Range
1 to 80 mS/cm for firmware below CDCUM003
0.5 to 80 mS/cm for firmware CDCUM003 and above (with Hamilton calibration) |
| Pressure Range bar g |
Pressure Range bar g
0 to 12 bar
|
| Resolution at 25 °C |
Resolution at 25 °C
0.1 pF/cm
|
| Max. Accuracy |
Max. Accuracy
Conductivity (at 0 pF): ± 100 µS (for whole operating temperature range)
|
| Max. Precision |
Max. Precision
Permittivity (over all frequencies): ± 1 pF (for whole operating temperature range)
|
| a-length |
a-length
420 mm
|
Spec. Version E
