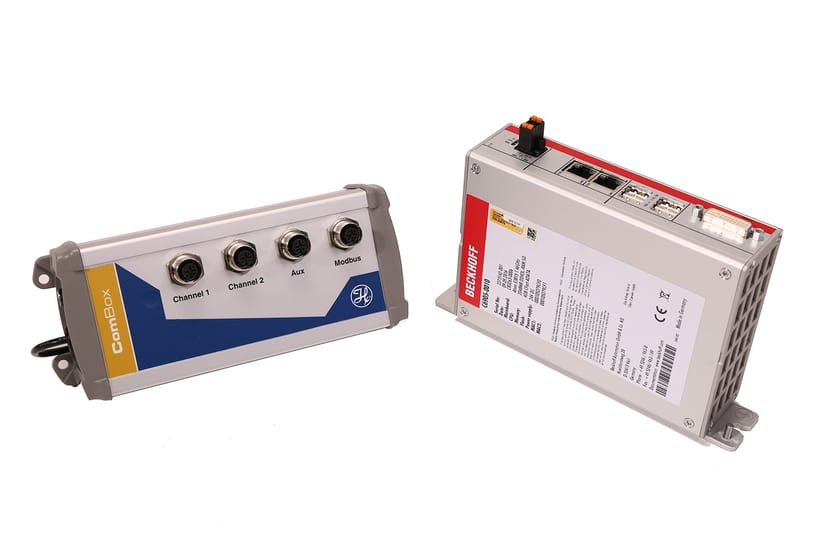

Specifically designed for system integrators, the CDIK includes ComBox, industrial PC, and interfaces for direct connection to the process control system. This is a discontinued product, replacement products can be found in the Related Products below.
Product Specifications
| Housing Material |
Housing Material
Aluminium, anodized
|
|---|---|
| Measuring Channels |
Measuring Channels
2
|
| Dimensions (W x D x H) |
Dimensions (W x D x H)
45 x 163 x 115 mm (without mounting plate)
|
| Analog Output |
Analog Output
Optional AUX to Analog Output Box 4-20 mA
|
| Digital Interface |
Digital Interface
RS485 Modbus (max. 32 addresses)
|
| Operating Voltage |
Operating Voltage
24 VDC
|
| Operating Humidity |
Operating Humidity
0 to 80 %
|
| Operating Temperature Range |
Operating Temperature Range
0 to 55 °C
|
Spec. Version B
