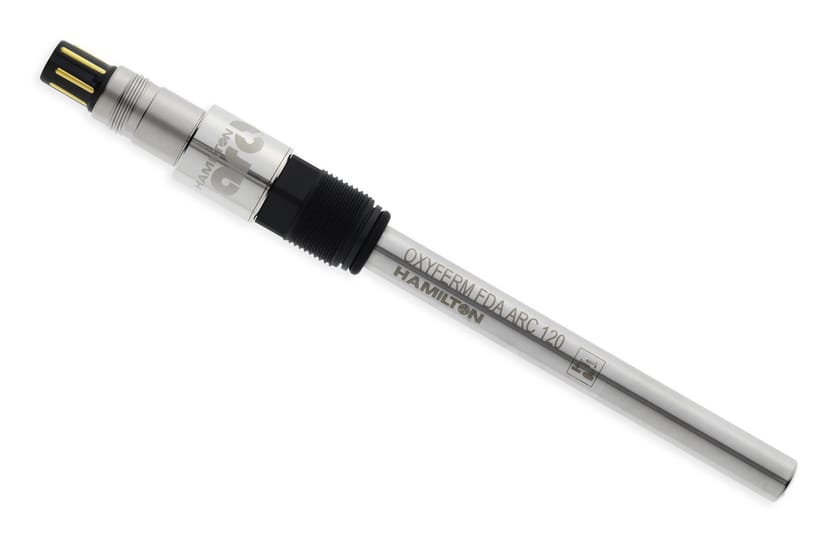

The OxyFerm FDA Arc is an electrochemical oxygen sensor suited for applications with high demands for hygiene.
Product Specifications
| Sensor Family |
Sensor Family
OxyFerm FDA
|
|---|---|
| Wetted Parts |
Wetted Parts
Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer) FKM (Fluorocarbon Elastomer) VMQ (Silicone elastomer) See compliance details in Material Specification document |
| Electrical Connector |
Electrical Connector
VP8
|
| Measuring Range |
Measuring Range
10 ppb to 40 ppm (DO) or 0.2 to 1000 mbar (pO₂)
|
| Electrolyte |
Electrolyte
Oxylyte
|
| Accuracy at 25 °C |
Accuracy at 25 °C
± 2 %
|
| Drift at Room Temperature |
Drift at Room Temperature
< 1 % per week
|
| Membrane Cap |
Membrane Cap
FDA
|
| Oxygen Consumption |
Oxygen Consumption
Ca. 20 ng/h in air at 25 °C
|
| Temperature Sensor |
Temperature Sensor
NTC 22 kOhm
|
| Configurable Values |
Configurable Values
Dissolved oxygen (DO): mbar, %-sat, %-vol, µg/l ppb, mg/l ppm; Temperature: °C, °F, K
|
| Surface Quality of Steel |
Surface Quality of Steel
Ra < 0.4 µm (N5)
|
| Electrode system |
Electrode system
Silver platinum combination
|
| Analog Interface 1 |
Analog Interface 1
4 to 20 mA for DO, programmable
|
| Analog Interface 2 |
Analog Interface 2
4 to 20 mA for Temp., programmable
|
| Analog Interface 1 and 2 |
Analog Interface 1 and 2
Galvanically not isolated; pulse width modulation 3.5 kHz
|
| Baud Rate |
Baud Rate
4800, 9600, 19200, 38400, 57600, 115200 Bd
|
| Polarization Voltage and Time |
Polarization Voltage and Time
-670 ± 50 mV, ≥ 2 hours
|
| Operating Voltage |
Operating Voltage
7 to 30 VDC max. 150 mW
|
| Serial Number |
Serial Number
Yes
|
| Response Time |
Response Time
t98% < 60 s at 25 °C
|
| Certificate |
Certificate
Yes, with parameter settings and materials used
|
| ATEX Approval |
ATEX Approval
No
|
| IECEx Approval |
IECEx Approval
No
|
| Diameter |
Diameter
12 mm
|
| Autoclavable |
Autoclavable
Yes
|
| Steam Sterilizable |
Steam Sterilizable
Yes
|
| CIP |
CIP
Yes
|
| Operating Temperature Range |
Operating Temperature Range
Analog interface: 0 to 110 °C; Digital interface: 0 to 130 °C
|
| Pressure Range bar g |
Pressure Range bar g
0 to 4 bar
|
| Max. CO₂ Partial Pressure |
Max. CO₂ Partial Pressure
0.01 bar
|
| Required Flow |
Required Flow
≥ 0.03 m/s
|
| Automatic Polarization |
Automatic Polarization
Yes, max. 2 hours stabilisation time
|
| Process Connection |
Process Connection
PG13,5
|
| a-length |
a-length
120 mm
|
Spec. Version C
