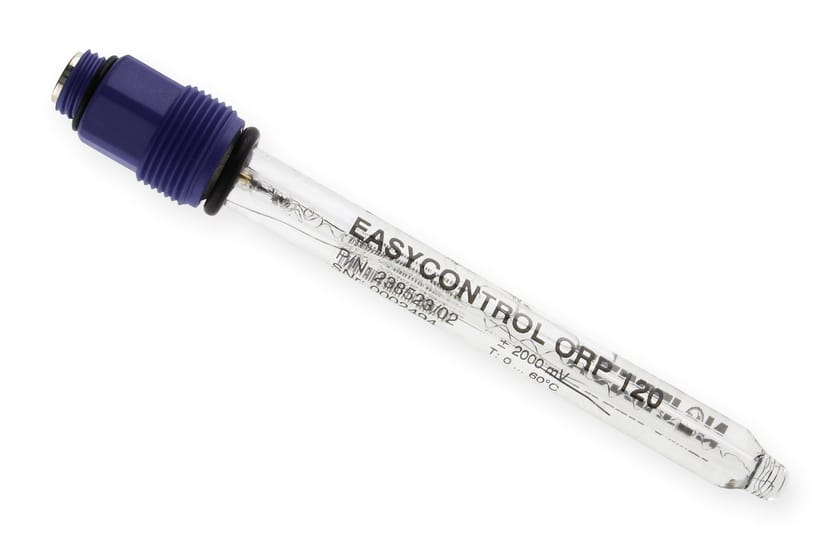

Entry-level ORP sensor suitable for processes of relatively low conductivity and low temperature. Ideal for chemical, water and swimming pool applications.
Product Specifications
| Wetted Parts |
Wetted Parts
GΙass
Ceramic EPDM (Ethylene propylene elastomer) |
|---|---|
| Electrical Connector |
Electrical Connector
S8
|
| a-length |
a-length
120 mm
|
| Measuring Range |
Measuring Range
-2000 mV to +2000 mV
|
| Electrolyte |
Electrolyte
Gel electrolyte
|
| ORP Element |
ORP Element
Pt wire
|
| Membrane Shape |
Membrane Shape
Spherical
|
| Diaphragm |
Diaphragm
Ceramic
|
| Number of Diaphragms |
Number of Diaphragms
1
|
| Reference System |
Reference System
Ag/AgCl
|
| Liquid Earth |
Liquid Earth
No
|
| Temperature Sensor |
Temperature Sensor
No
|
| O-ring Material |
O-ring Material
FDA 21 CFR 177.2600; EC 1935/2004; USP <87>; USP <88> Class VI (121 °C)
|
| Process Connection |
Process Connection
PG13,5
|
| Serial Number |
Serial Number
Yes
|
| Recommended Storage |
Recommended Storage
Hamilton Storage Solution or 3 M KCl
|
| Certificate |
Certificate
No
|
| ATEX Approval |
ATEX Approval
No
|
| IECEx Approval |
IECEx Approval
No
|
| Diameter |
Diameter
12 mm
|
| Autoclavable |
Autoclavable
No
|
| Steam Sterilizable |
Steam Sterilizable
No
|
| CIP |
CIP
No
|
| Operating Temperature Range |
Operating Temperature Range
0 to 60 °C
|
| Sample min Conductivity |
Sample min Conductivity
5 µS/cm
|
| Pressure Range bar g |
Pressure Range bar g
0 to 2 bar
|
Spec. Version B
