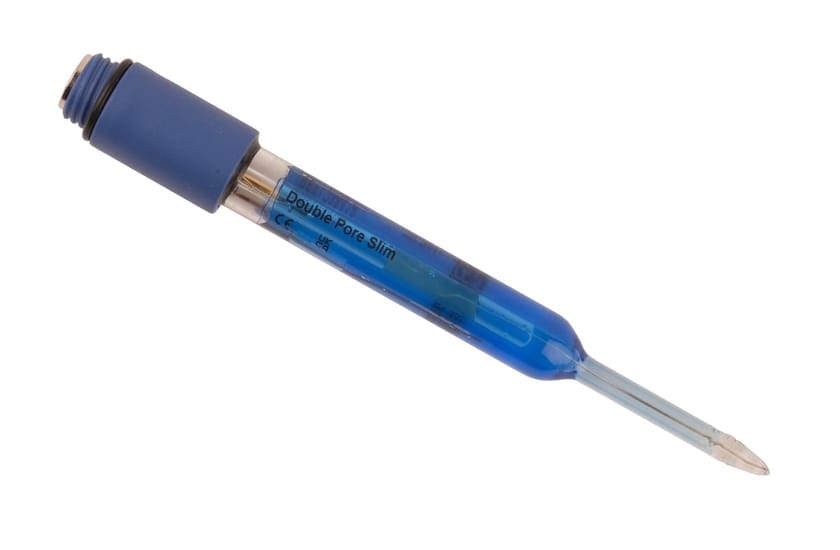

Maintenance-free, combination pH puncture electrode with options of 4.5mm or 6mm shaft diameter, made especially for use with solid and semi-solid samples.
Product Specifications
| Sensor Family |
Sensor Family
Double Pore
|
|---|---|
| Wetted Parts |
Wetted Parts
GΙass
|
| pH Glass |
pH Glass
Hamilton Type HF Glass
|
| Electrical Connector |
Electrical Connector
S7
|
| a-length |
a-length
35 mm
|
| Parameter |
Parameter
pH
|
| Measuring Range |
Measuring Range
pH 0 to 14
|
| Electrolyte |
Electrolyte
Polisolve
|
| Sensitivity |
Sensitivity
57 to 59 mV / pH at 25 °C
|
| Zero Point |
Zero Point
0 ± 20 mV
|
| pH Glass Resistance |
pH Glass Resistance
Moderate
|
| Membrane Shape |
Membrane Shape
Conical
|
| Diaphragm |
Diaphragm
Single Pore
|
| Number of Diaphragms |
Number of Diaphragms
2
|
| Reference System |
Reference System
Ag/AgCl
|
| Liquid Earth |
Liquid Earth
No
|
| Temperature Sensor |
Temperature Sensor
No
|
| Minimum Immersion Depth |
Minimum Immersion Depth
15 mm
|
| Serial Number |
Serial Number
Yes
|
| Recommended Storage |
Recommended Storage
Hamilton Storage Solution or 3 M KCl
|
| Certificate |
Certificate
Yes, with measured values in Buffer pH 4.01 and pH 7.00
|
| Diameter |
Diameter
12 mm
|
| Operating Temperature Range |
Operating Temperature Range
0 to 60 °C
|
| Pressure Range bar g |
Pressure Range bar g
Atmospheric pressure
|
| Shaft Diameter Below |
Shaft Diameter Below
4.5 mm
|
Spec. Version B
