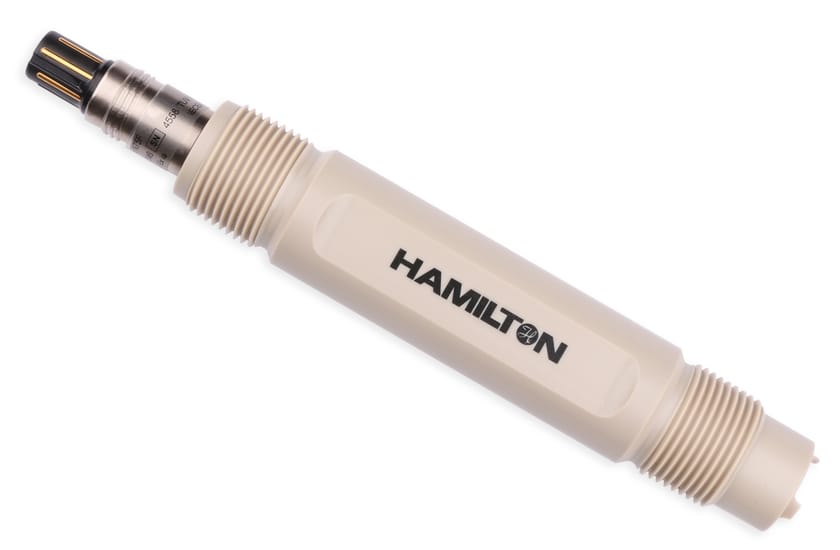

InchTrode sensors ensure fast and accurate pH measurement in demanding paper and chemical applications.
Product Specifications
| Measurement Principle |
Measurement Principle
Combination electrode; pH potential measured against reference
|
|---|---|
| pH Glass |
pH Glass
Hamilton Type HF Glass
|
| Measuring Range |
Measuring Range
pH 0 to 14
|
| Electrolyte |
Electrolyte
Polisolve
|
| Sensitivity |
Sensitivity
57 to 59 mV / pH at 25 °C
|
| Zero Point |
Zero Point
0 ± 20 mV
|
| pH Glass Resistance |
pH Glass Resistance
Moderate
|
| Diaphragm |
Diaphragm
Single Pore ring
|
| Number of Diaphragms |
Number of Diaphragms
1
|
| Reference System |
Reference System
Hamilton Everef-L
|
| Liquid Earth |
Liquid Earth
Yes
|
| Wetted Parts |
Wetted Parts
GΙass
PEEK (Polyetheretherketone) |
| Serial Number |
Serial Number
Yes
|
| Recommended Storage |
Recommended Storage
Hamilton Storage Solution or 3 M KCl
|
| Certificate |
Certificate
No
|
| Steam Sterilizable |
Steam Sterilizable
Yes
|
| Operating Temperature Range |
Operating Temperature Range
-10 to 125 °C
|
| Sample min Conductivity |
Sample min Conductivity
2 µS/cm
|
| Pressure Range bar g |
Pressure Range bar g
0 to 10 bar at 25 °C, 0 to 6 bar at 130 °C
|
| a-length |
a-length
143 mm
|
| Temperature Sensor |
Temperature Sensor
Pt1000
|
| Process Connection |
Process Connection
NPT ¾" Thread
|
| Electrical Connector |
Electrical Connector
VP6
|
| Membrane Shape |
Membrane Shape
Flat
|
| ATEX Approval |
ATEX Approval
II 1/2 G Ex ia IIB T4/T5/T6 Ga/Gb; II 1/2 D ia IIIC T x °C Da/Db
|
| Autoclavable |
Autoclavable
Yes
|
| CIP |
CIP
No
|
| Diameter |
Diameter
22 mm
|
Spec. Version B
