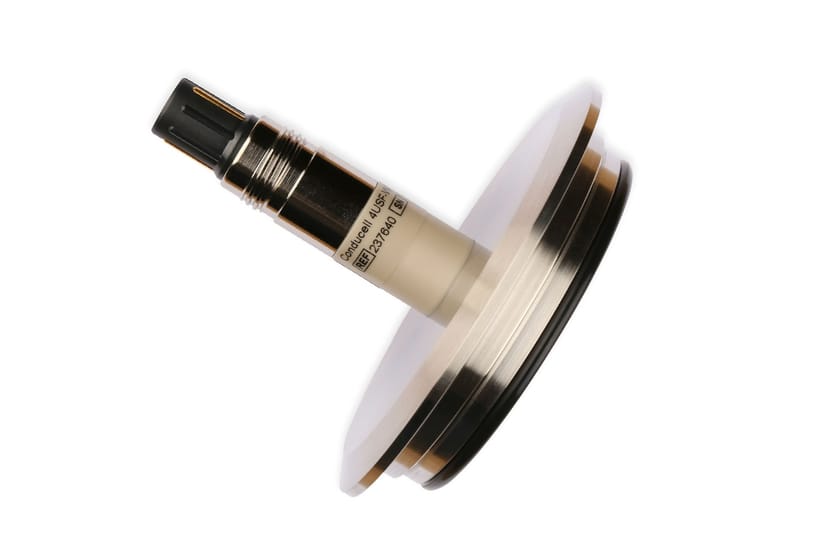

The Conducell 4USF-VV conductivity sensor with a VP6 connector and VariVent process connection is designed for hygienic applications and can withstand CIP, SIP, and autoclaving.
Product Specifications
| Process Connection |
Process Connection
Tuchenhagen Varivent DN50/60
|
|---|---|
| Wetted Parts |
Wetted Parts
Stainless Steel 1.4435
PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer) (FDA 21 CFR 177.2600; EU 1935/2004; USP <88> Class VI - 121 °C) (FDA 21 CFR 177.2415; EU 1935/2004, EU 10/2011; USP <88> Class VI - 121 °C) See compliance details in Material Specification document |
| Electrical Connector |
Electrical Connector
VP6
|
| a-length |
a-length
3 mm
|
| Measuring Range |
Measuring Range
1 µS/cm to 500 mS/cm
|
| Cell Constant |
Cell Constant
0.36 /cm
|
| Temperature Sensor |
Temperature Sensor
Pt1000
|
| Surface Quality of Steel |
Surface Quality of Steel
Ra < 0.4 µm (N5, electropolished)
|
| Serial Number |
Serial Number
Yes
|
| Certificate |
Certificate
Yes, with nominal and actual cell constant
|
| ATEX Approval |
ATEX Approval
No
|
| Diameter |
Diameter
12 mm
|
| Autoclavable |
Autoclavable
Yes
|
| Steam Sterilizable |
Steam Sterilizable
Yes
|
| CIP |
CIP
Yes
|
| Operating Temperature Range |
Operating Temperature Range
-20 to 150 °C
|
| Pressure Range bar g |
Pressure Range bar g
0 to 20 bar (135 °C), 0 to 10 bar (150 °C)
|
| Electrode Material |
Electrode Material
Stainless steel 1.4435
|
Spec. Version B
