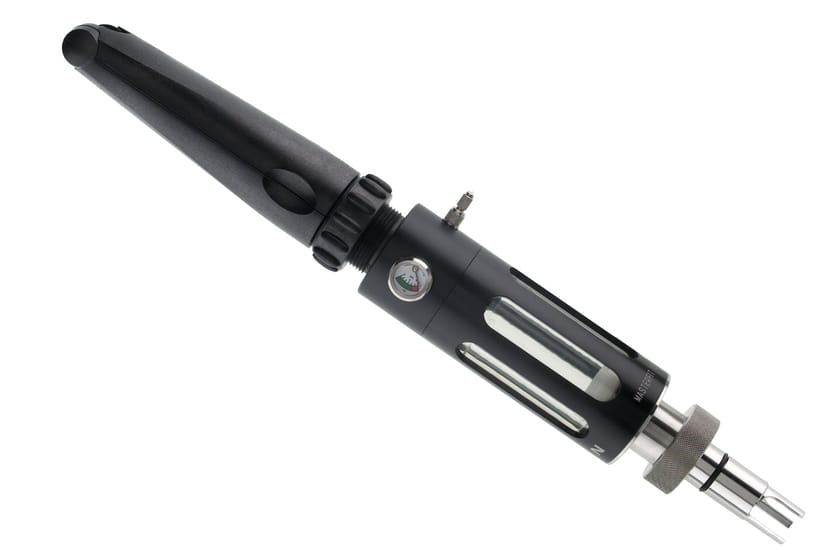

A static housing with G 1¼" process connection and multiple insertion depths to accommodate processes up to 6 bar.
Product Specifications
| For Sensors with |
For Sensors with
Liquid electrolyte (e.g. ChemoTrode)
|
|---|---|
| O-ring Position (OP) |
O-ring Position (OP)
22 to 55 mm
|
| Sensor Insertion Depth |
Sensor Insertion Depth
24 mm
|
| O-ring Material |
O-ring Material
EPDM
See compliance details in Material Specification document |
| Max. Diameter |
Max. Diameter
79 mm
|
| Min. Total Length |
Min. Total Length
475 mm
|
| Weight |
Weight
1400 g
|
| Wetted Parts |
Wetted Parts
Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer) See compliance details in Material Specification document |
| Process Connection |
Process Connection
G 1¼ inch (Ingold)
|
| Serial Number |
Serial Number
Yes
|
| Certificate |
Certificate
Yes, 3.1 certificate with heat number
|
| ATEX Approval |
ATEX Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db |
| IECEx Approval |
IECEx Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db |
| EAC Ex Approval |
EAC Ex Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db |
| UKEx Approval |
UKEx Approval
II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db |
| Diameter |
Diameter
25 mm
|
| Autoclavable |
Autoclavable
Yes
|
| Steam Sterilizable |
Steam Sterilizable
Yes
|
| CIP |
CIP
Yes
|
| Operating Temperature Range |
Operating Temperature Range
-10 to 125 °C
|
| Max. Pressure bar g |
Max. Pressure bar g
6 bar
|
| Product Family |
Product Family
MasterFit
|
| Sensor a-length |
Sensor a-length
200 mm
|
| Housing Insertion Depth |
Housing Insertion Depth
120 mm
|
| Max. Total Length |
Max. Total Length
555 mm
|
Spec. Version B
