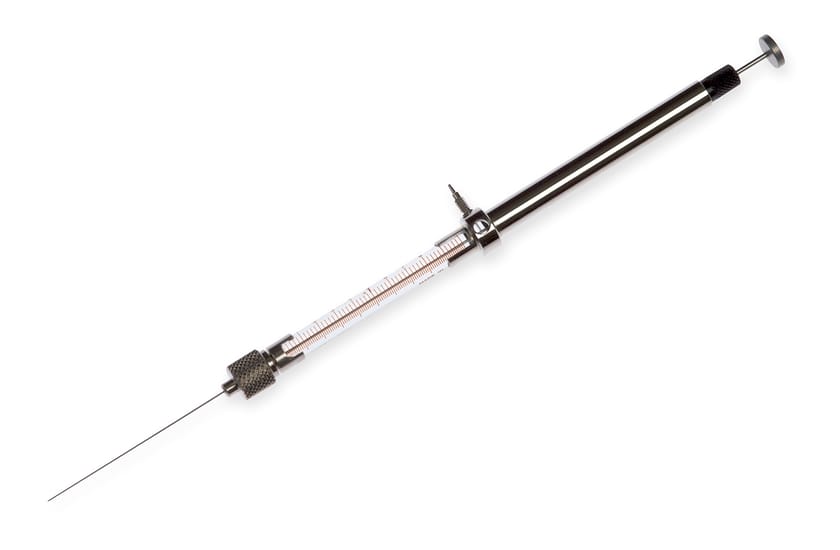

Hamilton's 700 series, Microliter # 701 Removable Needle (RN) Autosampler Syringe, Model 701, is designed for use with Bruker Varian 8100 and 8200 autosamplers. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.
Product Specifications
| Volume |
Volume
10 µL
|
|---|---|
| Syringe Type |
Syringe Type
Microliter
|
| Syringe Series |
Syringe Series
700
|
| Termination |
Termination
Removable Needle (RN)
|
| Needle |
Needle
Small RN
|
| Gauge |
Gauge
26s gauge
|
| Point Style |
Point Style
5: Conical Side Port
|
| Needle Length |
Needle Length
57 mm
|
| Plunger Style |
Plunger Style
Standard Plunger
|
| Fluid Path |
Fluid Path
SST, borosilicate glass
|
| Autoclavable |
Autoclavable
Yes
|
| Gas Sterilizable |
Gas Sterilizable
Yes
|
| Pressure |
Pressure
2000 psig (137.9 bar)
|
| Maximum Operating Temperature |
Maximum Operating Temperature
50°C / 122°F
|
| Minimum Operating Temperature |
Minimum Operating Temperature
20°C / 68°F
|
| Needle Inner Diameter |
Needle Inner Diameter
0.005 inches (0.13 mm)
|
| Needle Outer Diameter |
Needle Outer Diameter
0.019 inches (0.474 mm)
|
| Std Needle Dead Volume |
Std Needle Dead Volume
0.64 µL
|
| Sales Quantity |
Sales Quantity
1 syringe per pack
|
| Syringe Model Number |
Syringe Model Number
701
|
