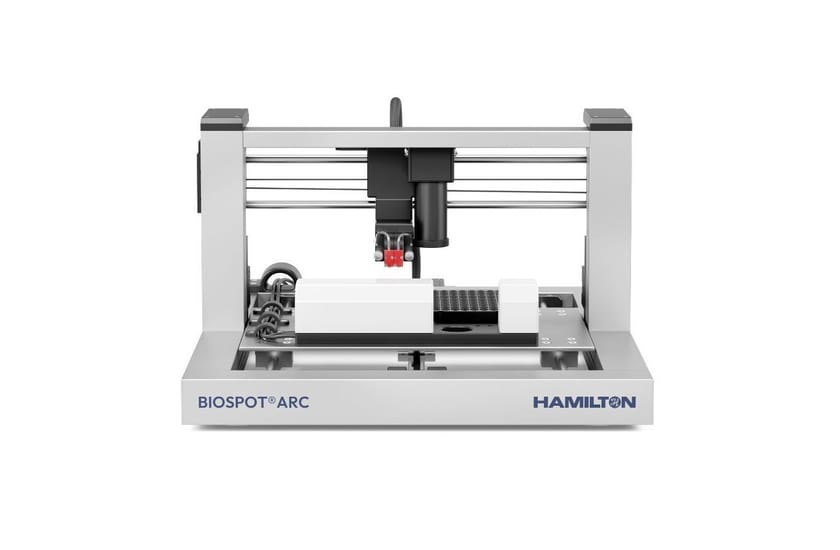

Compact benchtop dispenser for R&D labs, supports up to 2 channels and either 2 microplates or a 190×130 mm flat deck for early-stage assay testing.
Product Specifications
| System Dimensions | |
|---|---|
| Height |
Height
23.3 cm (9.17 in)
|
| Width |
Width
41.8 cm (1 ft, 4.46 in)
|
| Depth |
Depth
67.1 cm (2 ft, 2.42 in)
|
| Dispensing Configuration | |
| PIPEJET |
PIPEJET
up to 2
|
| SIJET |
SIJET
up to 2
|
| VALVEJET |
VALVEJET
n/a
|
| Maximum Supported Configuration |
Maximum Supported Configuration
2
|
| Channel Spacing |
Channel Spacing
Customizable
|
| Deck Configuration & Capacity | |
| Capacity (ANSI/SLAS Plates) |
Capacity (ANSI/SLAS Plates)
2
|
| Addressable Area |
Addressable Area
190 × 125 mm
|
| Aspiration from Source Plate |
Aspiration from Source Plate
1
n/a
|
| Process Control | |
| SMARTDROP |
SMARTDROP
Optional
|
| TOPVIEW |
TOPVIEW
Optional
|
| Ionizer |
Ionizer
n/a
|
| Positional Accuracy & Movement | |
| Absolute Positioning Accuracy |
Absolute Positioning Accuracy
200 µm
|
| Precision / Step Width |
Precision / Step Width
20 µm
|
| Axis Speed |
Axis Speed
X/Y: 120 mm/s ; Z: 30 mm/s
|
| Control & Software Environment | |
| Computer |
Computer
User-provided
|
| Software |
Software
BFX Control
|
1 Aspiration from source plate; also supports dispensing pipe cleaning when enabled.
