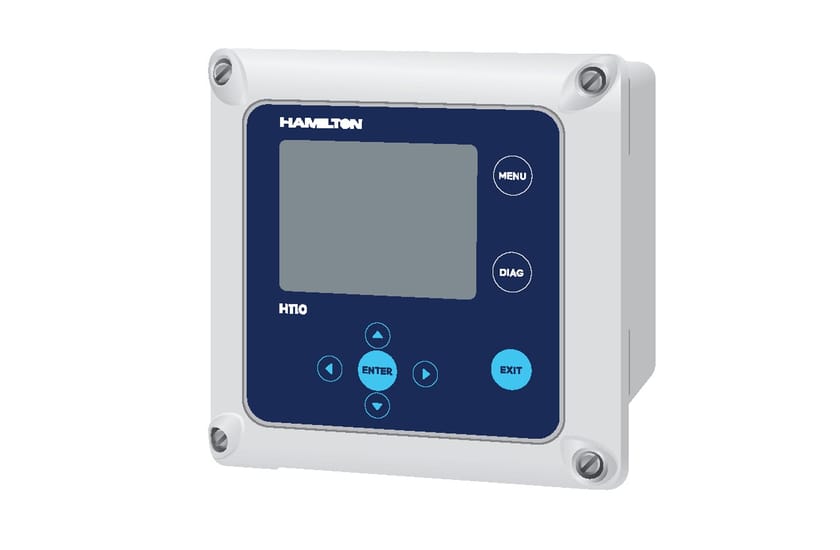

The Hamilton H110 is a versatile and reliable dual channel transmitter designed for precision monitoring in industrial applications.
Product Specifications
| Temperature Sensor |
Temperature Sensor
Automatic detection, PT100 (PH, COND), PT1000 (pH, COND), NTC 22K (DO)
|
|---|---|
| Dimensions (W x D x H) |
Dimensions (W x D x H)
154.9 x 154.9 x 126.3 mm
|
| 4 to 20 mA Current Range |
4 to 20 mA Current Range
0 - 20 mA / 4-20 mA
|
| Analog Output |
Analog Output
2 x 4 to 20 mA outputs
4 programmable relays Max. 5.0 A Inductive Load: 1/8 HP motor (maximum) at 115/230 Vac |
| 4 to 20 mA Accuracy |
4 to 20 mA Accuracy
±0.05 mA @ 25°C, max load: 550 Ω
|
| Power Supply |
Power Supply
20 to 30 VDC, 15 W
|
| Response Time |
Response Time
T95: pH: 5s, DO 6s, COND 3s
|
| Regulatory Approvals |
Regulatory Approvals
CSA: Class I, Division 2, Group A, B, C, and D Class II, Division 2, Groups E, F, and G Class III T4A Tamb = 50 °C
|
| Storage Conditions |
Storage Conditions
-20°C to +70°C
|
| Operating Humidity |
Operating Humidity
5 to 95% (non non-condensing)
|
| Operating Temperature Range |
Operating Temperature Range
0 to 55 °C
|
| Temperature Range |
Temperature Range
0 to 55 °C
|
| Protection Rating |
Protection Rating
IP66
|
| Measuring Error |
Measuring Error
pH: ±0.01 pH / ±1 mV (ORP)
DO: ±1 % COND: ±0.6 % at nominal operating conditions, ±1 least significant digit, plus sensor error and calibration uncertainty |
| Temperature Measuring Range |
Temperature Measuring Range
0-150 °C
|
| Temperature Resolution |
Temperature Resolution
±0.5°C from 0-50°C, ±1°C above 50°C
|
| Relay Output |
Relay Output
4 programmable relays, Max. 5.0 A , Inductive Load: 1/8 HP motor (maximum) at 115/230 Vac
|
| Measuring Channels |
Measuring Channels
2
|
| Measured Variable |
Measured Variable
COND
|
| Measuring Range |
Measuring Range
COND
0.01 μS/cm – 200 μS /cm (CC=0.01/cm) 0.1 μS/cm – 2000 μS /cm (CC=0.1/cm) 1 μS/cm – 20000 μS /cm (CC=1/cm) CC= Cell Constant |
Spec. Version A
