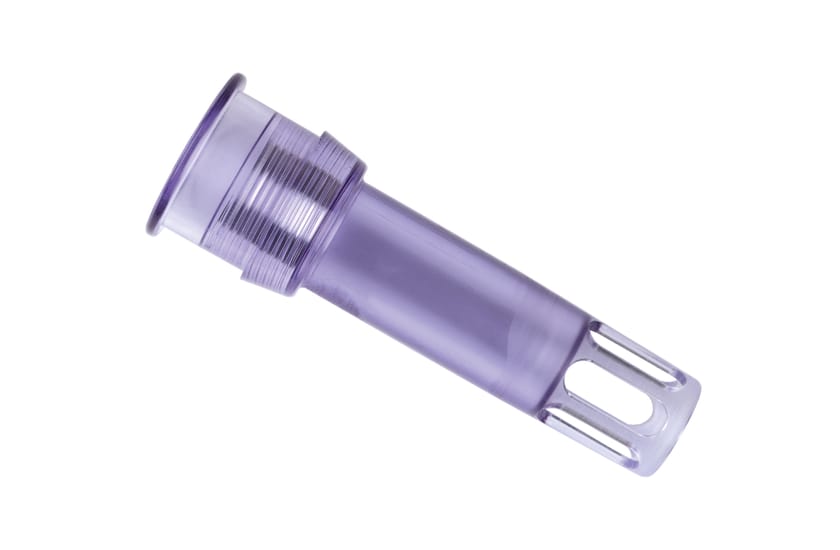

The pH Insert T is a single-use connection for the OneFerm pH 70 mm sensor. It can be integrated into the single-use container for a single application of pH Insert T and sensor.
Product Specifications
| Biocompatibility |
Biocompatibility
Yes, see material specification (upon request)
|
|---|---|
| Shelf Life |
Shelf Life
18 months prior gamma irradiation. 37 months after gamma irradiation
|
| Wetted Parts |
Wetted Parts
PC (Polycarbonate)
|
| Process Connection |
Process Connection
PG13,5
|
| Torque |
Torque
1.5 Nm (of the OneFerm pH sensor)
|
| Autoclavable |
Autoclavable
No
|
| Steam Sterilizable |
Steam Sterilizable
No
|
| CIP |
CIP
No
|
| Gamma Irradiatable |
Gamma Irradiatable
Yes, up to 50 kGy
|
| Operating Temperature Range |
Operating Temperature Range
4 to 50 °C
|
| Pressure Range bar g |
Pressure Range bar g
0 to 1 bar g
|
| Storage Temperature Range |
Storage Temperature Range
4 to 40 °C
|
Spec. Version A
