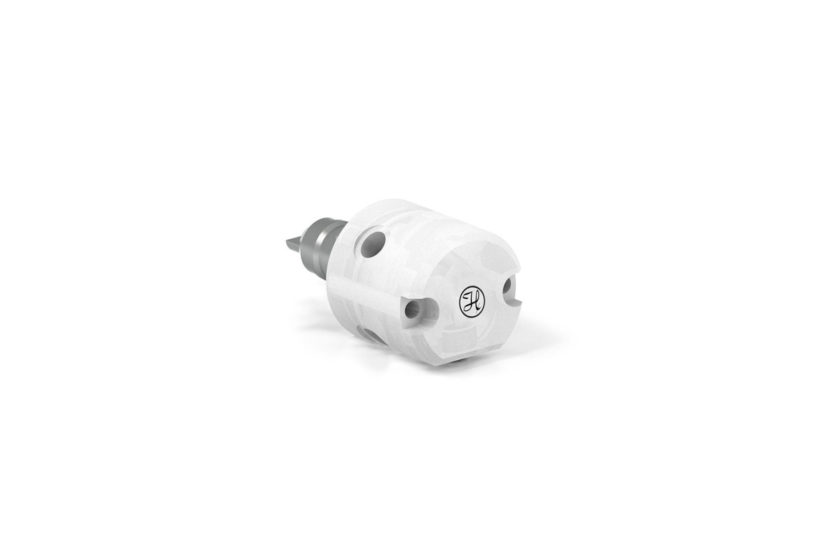

4-2 Hamaflon, HV, MVP Valve
Specifications
| Valve Model | 4-2 |
|---|---|
| Valve Model Description | 90° Flow Path 4-ports |
| Fluid Path | CTFE/Hamaflon |
| Valve Size | HV |
| Nominal Port Diameter | 0.059 inch (1.5 mm) |
| Housing Material | CTFE |
| Actuated | MVP/4 |
| Break Away Torque | 25 oz-in (176 mNm) |
| Panel Mounting | No |
| Panel Thickness | N/A |
| Thread Depth | 0.250 (6.35 mm) |
| Threaded Connection | ¼-28 |
| Operating Temp High | 40 °C (104 °F) |
| Operating Temp Low | 15 °C (59 °F) |
| Operating Pressure | 0 to 100 psig (0 to 6.9 bar) |
| Storage Temp High | 65 °C (149 °F) |
| Storage Temp Low | -29 °C (-20 °F) |
