Specifications

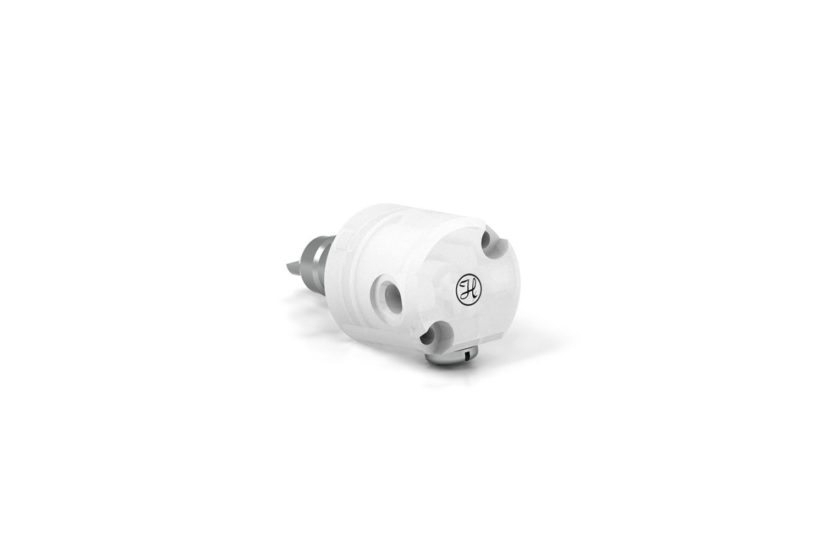

Valve Model 3-3
Valve Model Description "T" Flow Path 3-ports
Fluid Path CTFE/Hamaflon
Valve Size HV
Nominal Port Diameter 0.059 inch (1.5 mm)
Housing Material CTFE
Actuated MVP/4
Break Away Torque 25 oz-in (176 mNm)
Panel Mounting No
Panel Thickness N/A
Thread Depth 0.250 (6.35 mm)
Threaded Connection ¼-28
Operating Temp High 40 °C (104 °F)
Operating Temp Low 15 °C (59 °F)
Operating Pressure 0 to 100 psig (0 to 6.9 bar)
Storage Temp High 65 °C (149 °F)
Storage Temp Low -29 °C (-20 °F)
  • Part # / Ref: 99902-01
    (In Stock)
