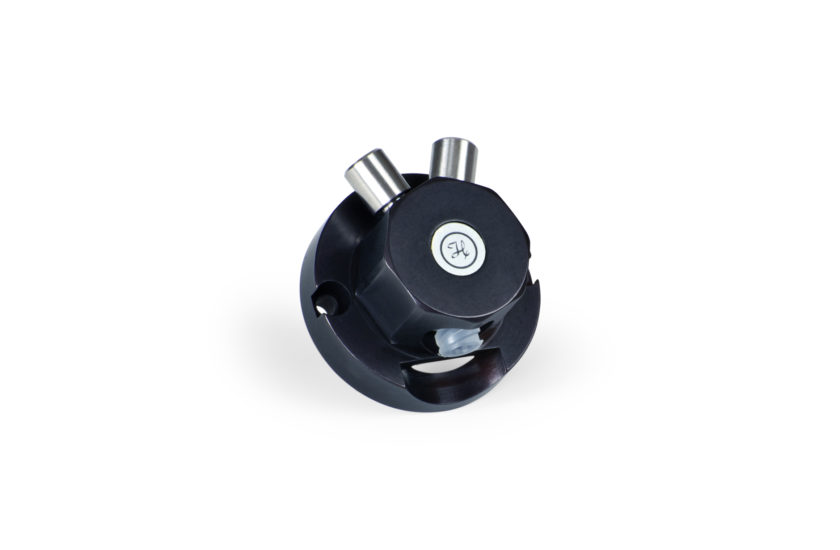

"Y" Ceramic, HVC, Luer Lock (TLL), PSD Valve
Maximum syringe volume compatibility: 5 mL (25 mL with adapter P/N 209651)
Found in these product categories:
Part/REF # 8778-01
-
(OEM)(OEM)Stock status is updated daily. For real-time status, please contact us.
Specifications
| Valve Model |
Valve Model
3-2
|
|---|---|
| Valve Model Description |
Valve Model Description
"Y" Valve
|
| Fluid Path |
Fluid Path
Ceramic/CTFE/ETFE
|
| Valve Size |
Valve Size
HVC
|
| Nominal Port Diameter |
Nominal Port Diameter
0.060 inch (1.5 mm)
|
| Housing Material |
Housing Material
Aluminum
|
| Actuated |
Actuated
PSD/4, PSD/6
|
Additional specifications
| Break Away Torque |
Break Away Torque
15 oz-in (105.9 mNm)
|
|---|---|
| Panel Mounting |
Panel Mounting
No
|
| Thread Depth |
Thread Depth
0.320 (8.1 mm)
|
| Threaded Connection |
Threaded Connection
¼-28
|
| Operating Temp High |
Operating Temp High
35 °C (95 °F)
|
| Operating Temp Low |
Operating Temp Low
10 °C (50 °F)
|
| Operating Pressure |
Operating Pressure
0 to 100 psig (0 to 6.9 bar)
|
| Storage Temp High |
Storage Temp High
50 °C (122 °F)
|
| Storage Temp Low |
Storage Temp Low
-20 °C (-4 °F)
|
| Syringe Port |
Syringe Port
PTFE Luer Lock (TLL)
|
