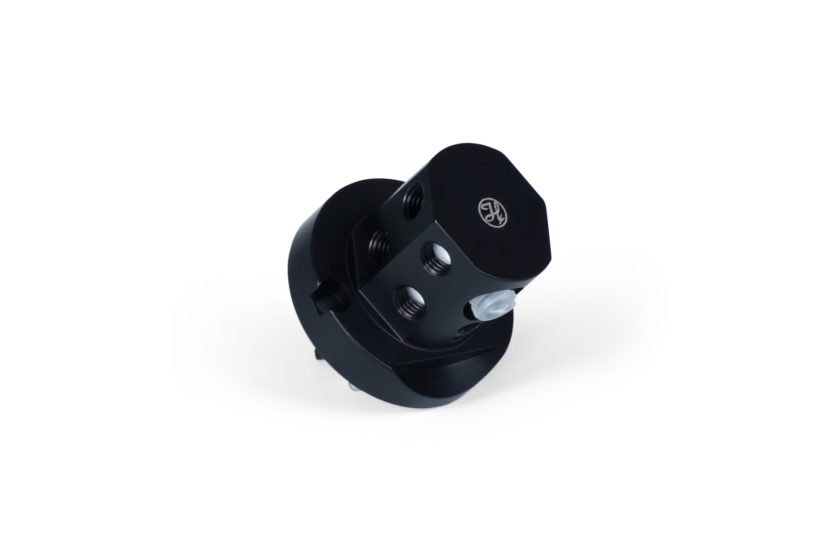

8-5 Ceramic, HVCX, TLL, PSD Valve

Found in these product categories:

Part/REF # 59943-01
  • (OEM)
    (OEM)
    Stock status is updated daily. For real-time status, please contact us.

Specifications

Valve Model
Valve Model
8-5
Valve Model Description
Valve Model Description
HVCX 8-5
Fluid Path
Fluid Path
Ceramic/CTFE/ETFE
Valve Size
Valve Size
HVCX
Nominal Port Diameter
Nominal Port Diameter
0.063 inch (1.6 mm)
Valve Outer Body Dimension
Valve Outer Body Dimension
1 inch (25.4 mm)
Housing Material
Housing Material
Aluminum

Additional specifications

Actuated
Actuated
PSD/4, PSD/6
Break Away Torque
Break Away Torque
15 oz-in (105.9 mNm)
Panel Mounting
Panel Mounting
No
Thread Depth
Thread Depth
0.226 (5.7 mm)
Threaded Connection
Threaded Connection
¼-28
Operating Temp High
Operating Temp High
35 °C (95 °F)
Operating Temp Low
Operating Temp Low
10 °C (50 °F)
Operating Pressure
Operating Pressure
0 to 100 psig (0 to 6.9 bar)
Storage Temp High
Storage Temp High
50 °C (122 °F)
Storage Temp Low
Storage Temp Low
-20 °C (-4 °F)
Compatible Syringe
Compatible Syringe
Luer Lock (TLL)
