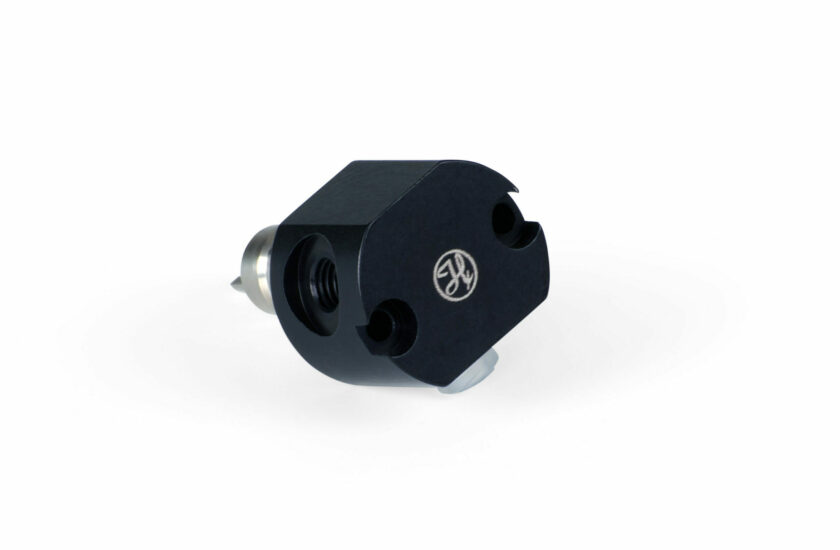

"Y" PTFE, HV, PSD Valve

Maximum syringe volume compatibility: 5 mL (25 mL with adapter P/N 209651)

Found in these product categories:

Part/REF # 57252-01
  • (OEM)
    (OEM)
    Stock status is updated daily. For real-time status, please contact us.

Specifications

Valve Model
Valve Model
3-2
Valve Model Description
Valve Model Description
"Y" Valve
Fluid Path
Fluid Path
PTFE/CTFE
Valve Size
Valve Size
HV
Nominal Port Diameter
Nominal Port Diameter
0.059 inch (1.5 mm)
Housing Material
Housing Material
Aluminum
Actuated
Actuated
PSD/4, PSD/6

Additional specifications

Break Away Torque
Break Away Torque
15 oz-in (105.9 mNm)
Panel Mounting
Panel Mounting
No
Panel Thickness
Panel Thickness
N/A
Thread Depth
Thread Depth
0.250 (6.35 mm)
Threaded Connection
Threaded Connection
¼-28
Operating Temp High
Operating Temp High
38 °C (100 °F)
Operating Temp Low
Operating Temp Low
-12 °C (10 °F)
Operating Pressure
Operating Pressure
0 to 100 psig (0 to 6.9 bar)
Storage Temp High
Storage Temp High
38 °C (100 °F)
Storage Temp Low
Storage Temp Low
-18 °C (0 °F)
