Robust Construction for Heavy Duty Applications

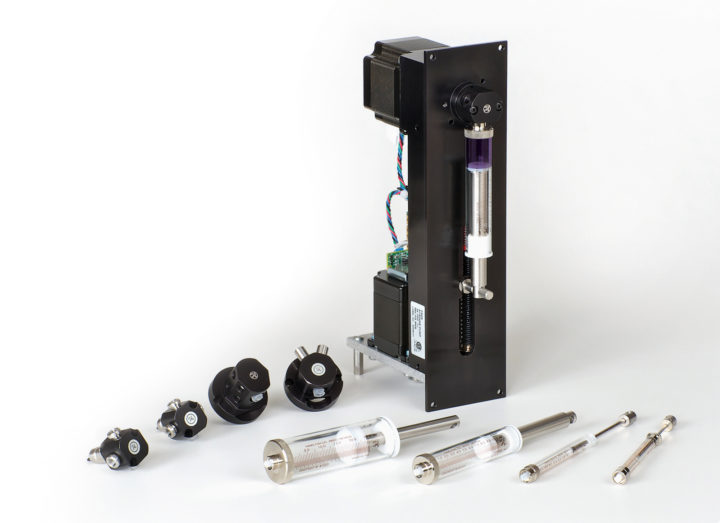

The PSD/8 uses large stepper motors to achieve high lift force and valve torque without sacrificing speed. This full-height 60 mm pump is perfect for applications requiring high flow rates and system back-pressures.

  • 60 mm stroke length
  • Face and bottom mounting
  • Easy serviceability: Modular design allows quick plug and play replacement
  • Strongest pump with the fastest flow rate
  • RoHS and CE compliant

Request a Manual or CAD File

  • PSD/8 Pumps

    Part # / Ref # Description
    9800-01 PSD/8 Short Drive Stem (HV valves)
    9800-02 PSD/8 Long Drive Stem (HVX valves)
  • PSD/8 Syringes

    Part # / Ref # Description
    9880-15 50 µL, Model 1705 TLL SYR, Instrument Syringe
    9880-20 100 µL, Model 1710 TLL SYR, Instrument Syringe
    9880-25 250 µL, Model 1725 TLL SYR, Instrument Syringe
    9880-30 500 µL, Model 1750 TLL SYR, Instrument Syringe
    9880-35 1 mL, Model 1001 TLL SYR, Instrument Syringe
    9880-45 5 mL, Model 1005 TLL SYR, Instrument Syringe
    9880-50 10 mL, Model 1010 TLL SYR, Instrument Syringe
    9882-15 50 µL, Model 1705 TLL SYR, Long Life Instrument Syringe
    9882-20 100 µL, Model 1710 TLL SYR, Long Life Instrument Syringe
    9882-25 250 µL, Model 1725 TLL SYR, Long Life Instrument Syringe
    9882-30 500 µL, Model 1750 TLL SYR, Long Life Instrument Syringe
    9882-35 1 mL, Model 1001 TLL SYR, Long Life Instrument Syringe
    9882-40 2.5 mL, Model 1002 TLL SYR, Long Life Instrument Syringe
    9882-45 5 mL, Model 1005 TLL SYR, Long Life Instrument Syringe
    9882-50 10 mL, Model 1010 TLL SYR, Long Life Instrument Syringe
  • PSD/8 Valves

    Part # / Ref # Description
    57252-01 "Y" PTFE, HV, VALVE, PSD/4
    58889-01 VALVE, PTFE, HV, 3-3, PSD/4/6/8
    59943-01 VALVE, CERAMIC, HVCX 8-5 1025/1050
    7991-01 VALVE, CERAMIC, HVC, 3-5, PSD/4
    7992-01 VALVE, CERAMIC, HVCX, 4-5, PSD/4
    7993-01 VALVE, CERAMIC, HVCX, 8-5, PSD/4
    8063-01 VALVE, CERAMIC, HVC, 3-3, PSD/4
    8778-01 Y CERAMIC VALVE, PSD/4
    9234-01 VALVE, CERAMIC, 4-2, PSD/4
    9537-01 "Y" CTFE MANIFOLD VALVE BLOCK, PSD4
    9998-01 VALVE, CERAMIC, HVCX, 6-5, PSD4
  • PSD/8 Starter Kit

    Part # / Ref # Description
    57026-01 Demo Communication Cable for PSD/8
    64316-08 PSD/8 Starter Kit

Syringe Pump Specifications

Highest Resolution
(steps/stroke)
Fastest/Slowest
(time/stroke)
Size = D X H X W
(in)
Linear Force Capability
(lbf)
Valve Torque Capability
(in oz)
Syringe Volume Range
(µL)
Weight
(lbs)
24,000
1.4 sec / 20 min
4.51 X 10 X 2.56
45
65
50 to 25,000
5.4
