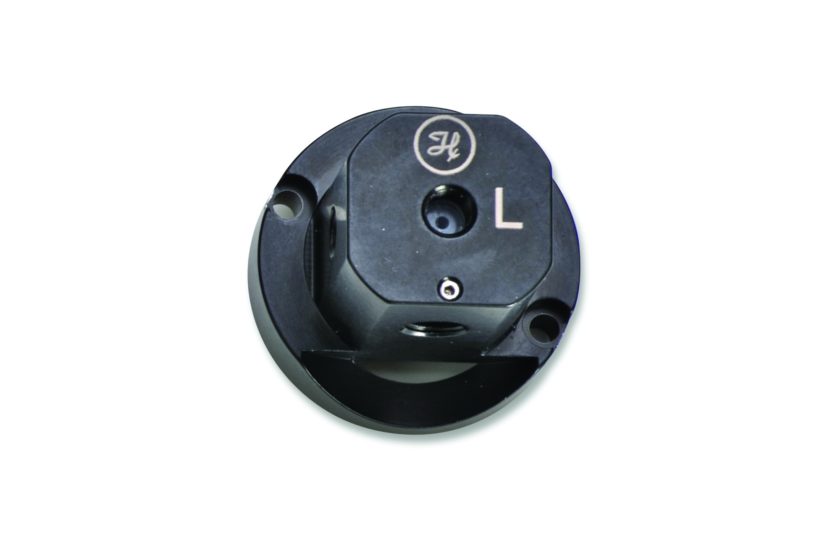

Microlab 600 Universal Valve - Left
Found in these product categories:
Part/REF # 60676-01
-
$290.00(In Stock)(In Stock)Stock status is updated daily. For real-time status, please contact us.
Specifications
| Valve Model Description |
Valve Model Description
Microlab 600 Universal Valve Left |
|---|---|
| Fluid Path |
Fluid Path
PTFE/CTFE |
| Nominal Port Diameter |
Nominal Port Diameter
0.059 inch (1.5 mm) |
| Housing Material |
Housing Material
PEEK |
| Actuated |
Actuated
All Microlab 600 instruments |
| Break Away Torque |
Break Away Torque
65 in oz. (455 mNm) |
| Panel Mounting |
Panel Mounting
No |
Additional specifications
| Threaded Connection |
Threaded Connection
¼-28 |
|---|---|
| Operating Temp High |
Operating Temp High
38 °C (100 °F) |
| Operating Temp Low |
Operating Temp Low
-12 °C (10 °F) |
| Operating Pressure |
Operating Pressure
0 to 100 psig (0 to 6.9 bar) |
| Storage Temp High |
Storage Temp High
38 °C (100 °F) |
| Storage Temp Low |
Storage Temp Low
-18 °C (0 °F) |
