Valve Fluid Paths

Straight Fluid Path

Valves Flow Path 1 1

1-1 Valves

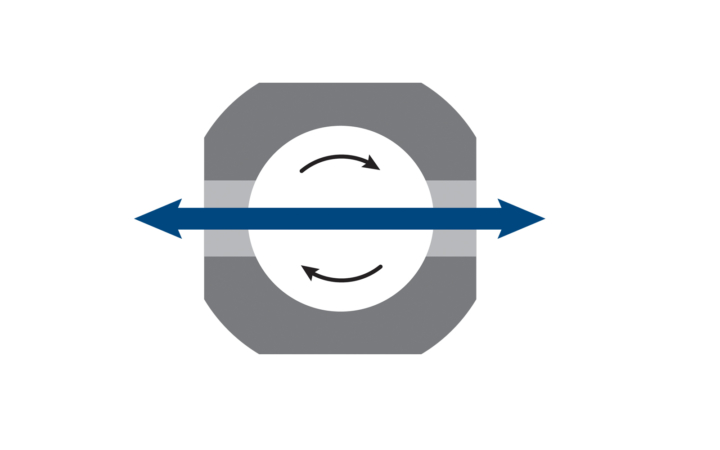

Two 180 degree valve ports with a straight through valve plug design.

Valves Flow Path 4 1

4-1 Valves

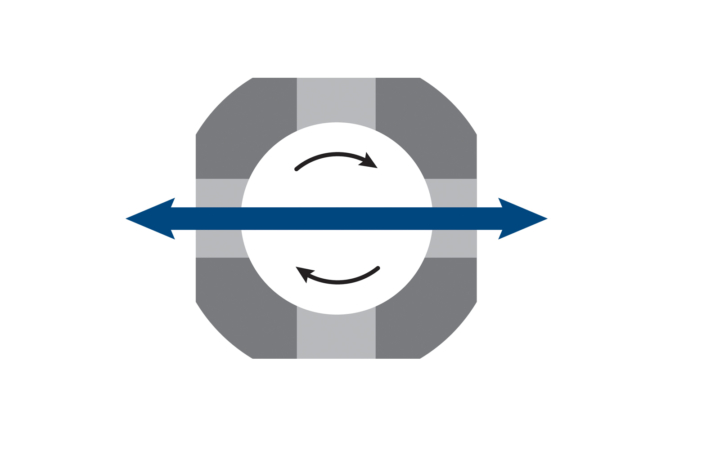

Four valve ports at 90 degrees with a straight through valve plug design.

90 degree fluid path

Valves Flow Path 2 2

2-2 Valves

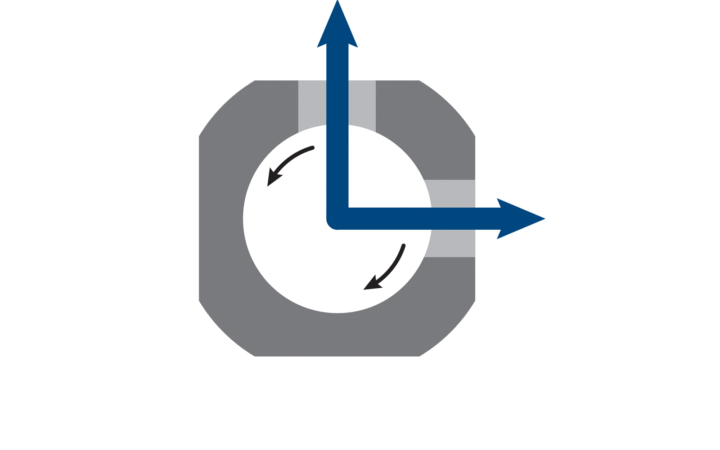

Two 90 degree valve ports with a 90 degree valve plug design.

Valves Flow Path 3 2

3-2 Valves

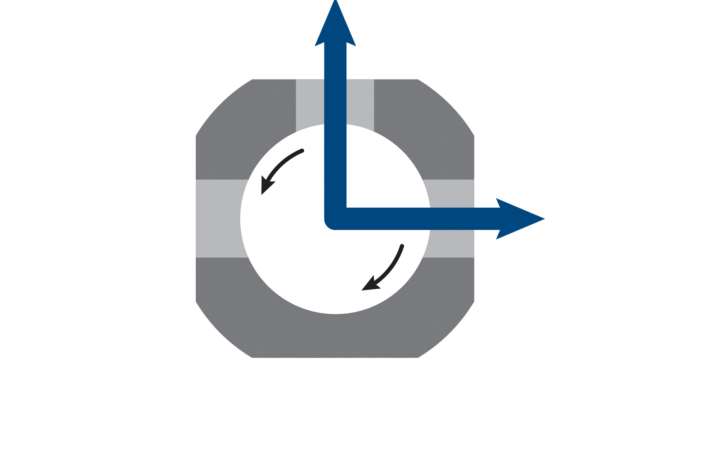

Three valve ports at 90 degrees with a 90 degree valve plug design.

Valves Flow Path 4 2

4-2 Valves

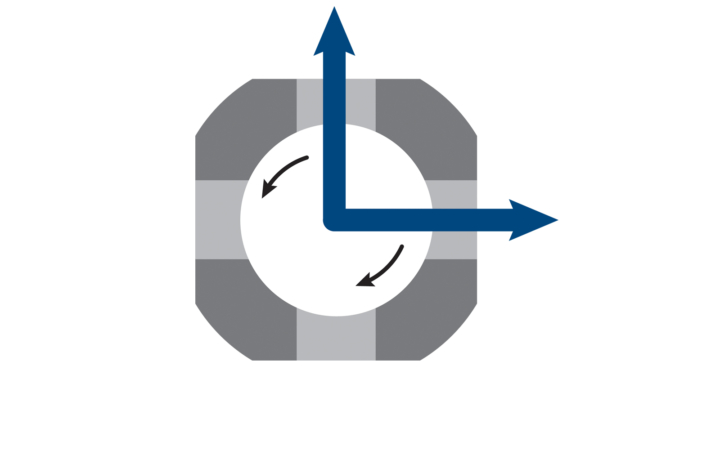

Four valve ports at 90 degrees with a 90 degree valve plug design.

"T" Fluid Path

Valves Flow Path 3 3

3-3 Valves

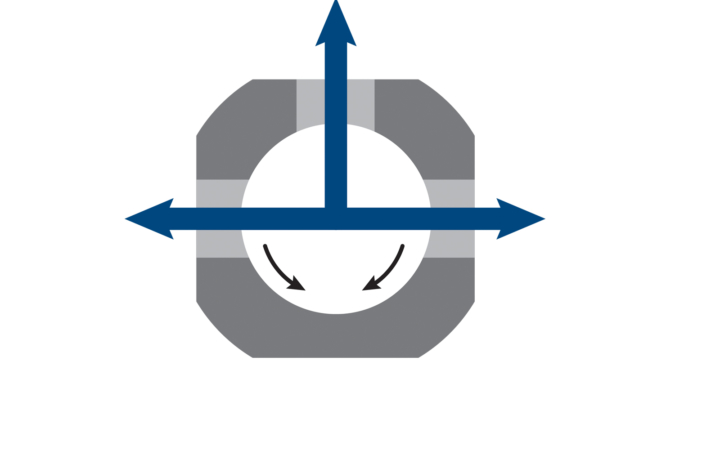

Three valve ports at 90 degrees with a "T" valve plug design.

Valves Flow Path 4 3

4-3 Valves

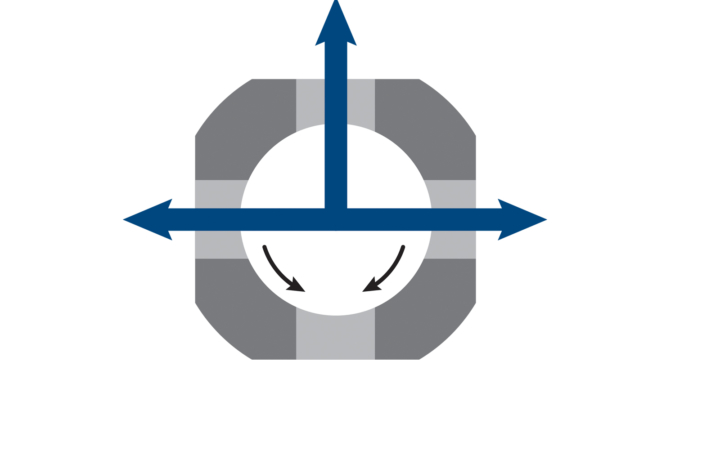

Four valve ports at 90 degrees with a "T" valve plug design.

Distribution Fluid Path

Valves Flow Path 1 5

1-5 Valves

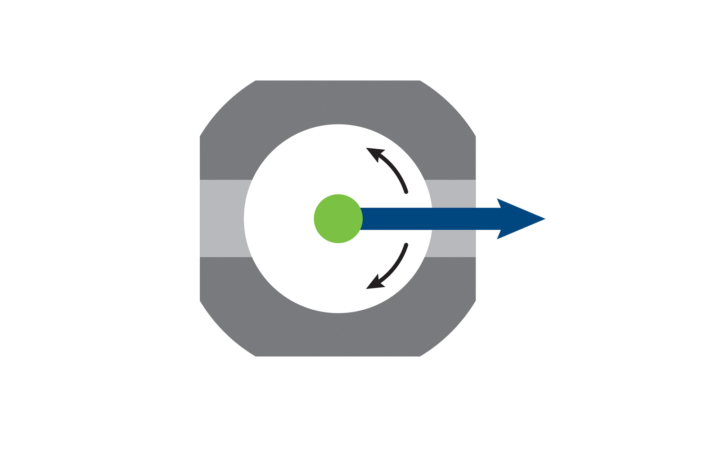

Two 180 degree valve ports with a distribution valve plug design.

Valves Flow Path 2 5

2-5 Valves

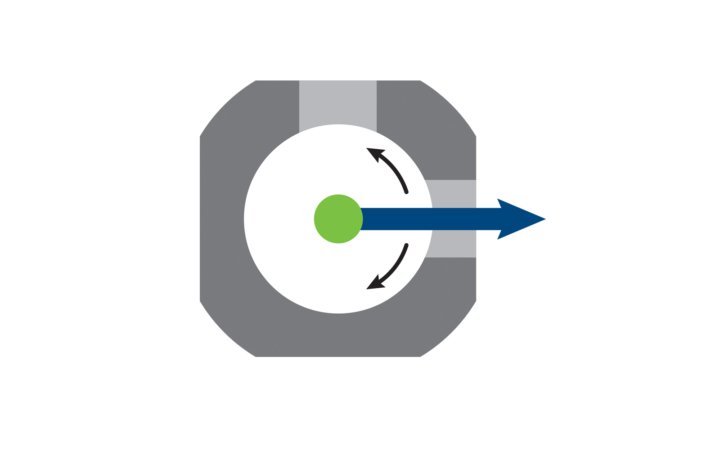

Two 90 degree valve ports with a distribution valve plug design.

Valves Flow Path 3 5

3-5 Valves

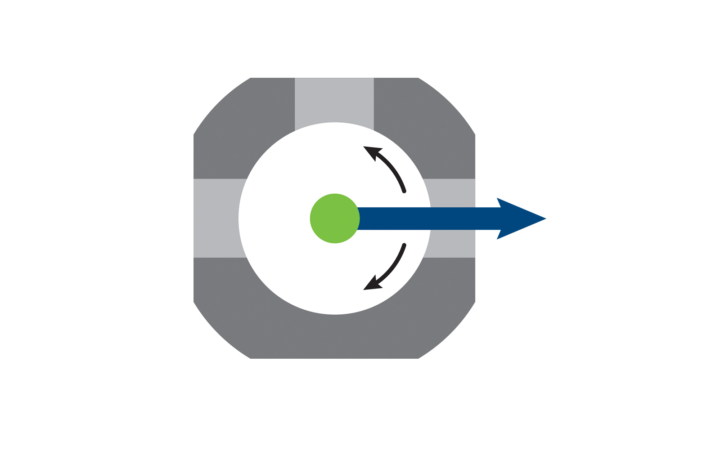

Three valve ports at 90 degrees with a distribution valve plug design.

Valves Flow Path 4 5

4-5 Valves

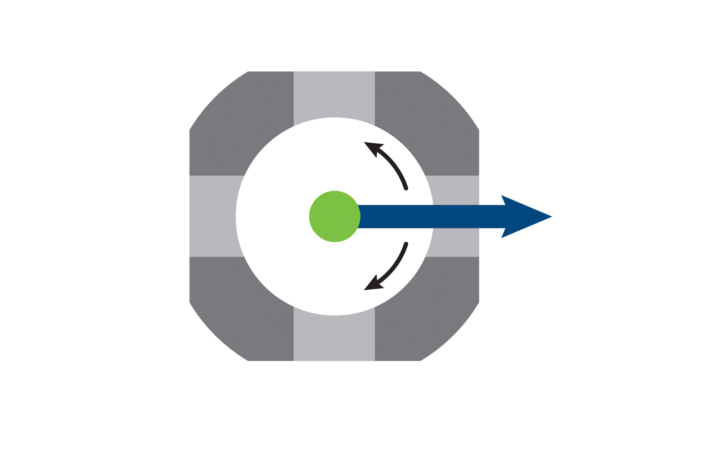

Four valve ports at 90 degrees with a distribution valve plug design.

Valves Flow Path 6 5

6-5 Valves

Six valve ports at 60 degrees with a distribution valve plug design.

Valves Flow Path 8 5

8-5 Valves

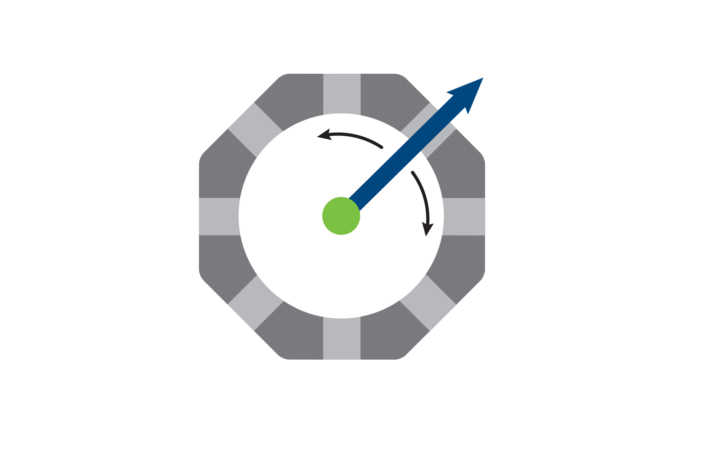

Eight valve ports at 45 degrees with a distribution valve plug design.

Loop Valves


Valves Flow Path 4 4

4-4 Valves

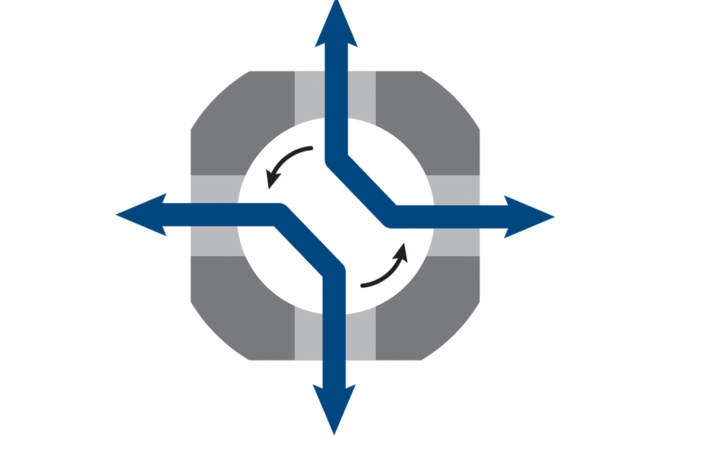

Four valve ports at 90 degrees with a loop valve plug design.

Valves Flow Path 6 6

6-6 Valves

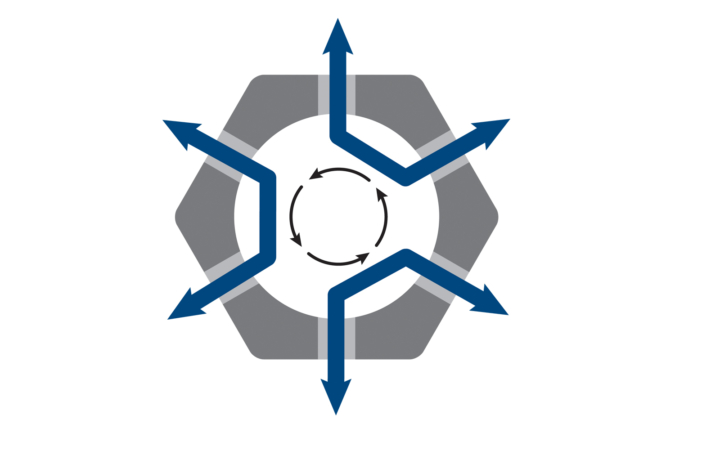

Six valve ports at 60 degrees with a loop valve plug design.

Valves Flow Path 8 7

8-7 Valves

Eight valve ports at 45 degrees with a loop valve plug design.
