Unmatched Accuracy and Precision

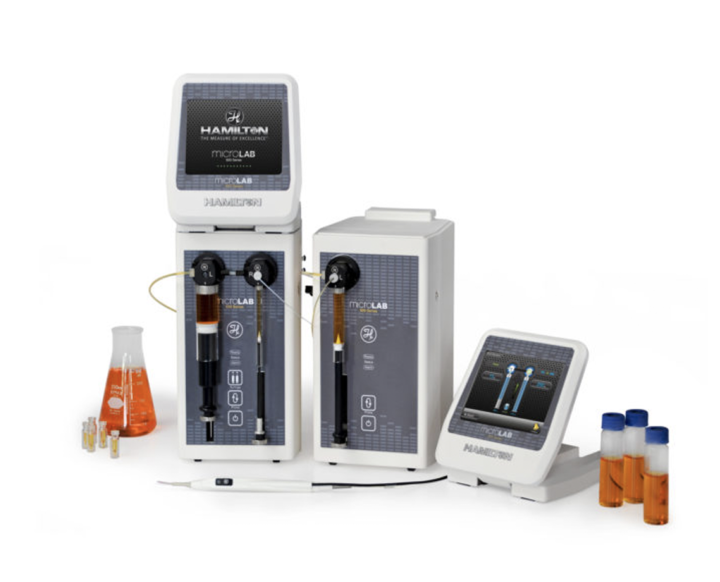

The Microlab 600 is a highly precise syringe pump with a graphical user interface designed to quickly and easily dilute and dispense liquids.

Where is the Microlab 600 used?

Every laboratory has tasks that are too small to automate and too large to reliably accomplish by hand. The Microlab 600 is a semi-automated liquid handler designed specifically for these in-between applications. The Microlab 600 increases throughput and consistency while reducing cost and wasted buffer. Common industries utilizing the Microlab 600 are:

  • Forensics
  • Environmental Analysis
  • Mining
  • Oil Samping
  • Cannabis

Why Choose the Microlab 600?

Ml600 Microlab Overview Accuracy Icon

Accuracy and Precision

The Microlab 600 is a diluting and dispensing system based on Hamilton’s precision syringes. The positive displacement system provides better than 99% accuracy, independent of a liquid's viscosity, vapor pressure and temperature.
Ml600 Compliance Logging Icon

Compliance and Logging

Hamilton Company introduces the newest feature of the Microlab 600 Advanced – a comprehensive compliance package. This free software update provides a variety of security protections, simplifies adherence to FDA GXP regulations, ability to administer user accounts and passwords, create log files that conform to 21 CFR Part 11 and manage log files on a PC using the LyncStore application.
Ml600 Microlab Overview Security Icon

Process Security

The Microlab 600 automates the pipetting process. Methods established by a lab manager are stored in the controller and are consistently run by all technicians. Eliminate volume adjustment mistakes, variability in technique, and simplify compliance to EPA, FDA (GLP, GMP) and ISO regulations.
Ml600 Microlab Overview Chemical Icon

Chemically Inert

The fluid path for the Microlab 600 is made of borosilicate glass, PTFE and CTFE, which are resistant to harsh chemicals used in the laboratory. These high quality materials minimize the potential for leaching of metals or other contaminates that can be detected by downstream processes.
Ml600 Language Icon

Language Support

The Microlab 600 now features language support for English, Spanish, German, French, Italian, Portuguese, Korean, Japanese, Traditional Chinese and Simplified Chinese.
Ml600 Microlab Overview Calibration Icon

Instrument Calibration

The Microlab 600 is shipped with a calibration certificate traceable to N.I.S.T. standards. Between calibrations the syringe drives and valve motors are monitored by optical encoders ensuring that every dispense is completed, accurately and precisely.

Industries

Learn how the Microlab 600 is eliminating risks by streamlining processes prone to variation to deliver increased throughput, reduced costs, and minimized operator issues in these top industries.

Resources

Hamilton's knowledge base provides a range of explanatory articles, frequently asked questions, and document downloads.

Hardware

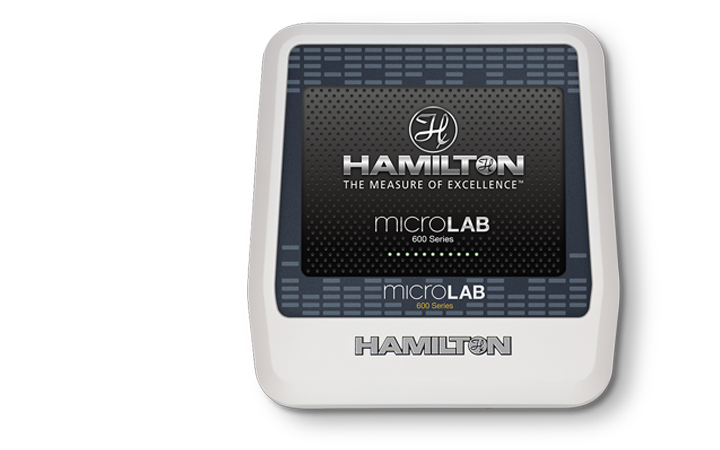

The Controller

The Microlab 600 controller features a large, easy-to-use touchscreen with a processor more than 20 times faster than the original controller. A dedicated host USB port enables connection to a keyboard, mouse, printer, and barcode reader.

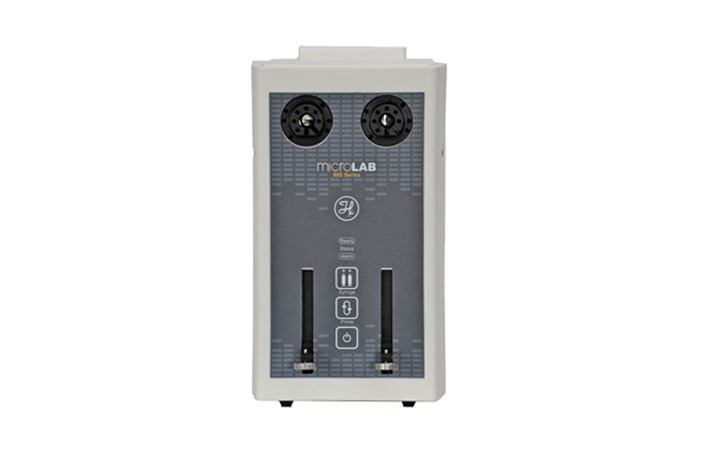

The Pump

The pump unit is the heart of the Microlab 600. The Microlab 600 is available as a single or dual syringe system. The pump unit contains a precision drive motor, the syringe drive mechanism, the valve assembly, syringe selection button, prime button, power button, and hand probe receptacles.

The high torque, precision stepper motors provide unsurpassed positional accuracy across the full range of Hamilton syringes from 10 μl to 50 ml. The instrument communicates with the controller or a computer network via an ethernet port. Serial communication via RS-232 is also possible for programming in a non Windows® environment.

Software

Hamilton conducted human factor studies to create a clear and understandable system that is communicated through a straightforward user interface. Each screen was thoughtfully designed to simplify the flow of each process and maximize its ease of use.

The Microlab 600 controller features a large, easy-to-use touchscreen. A dedicated host USB port enables connection to a keyboard, mouse, printer, and barcode reader.

LEARN MORE ABOUT SOFTWARE

Basic Controller

The Basic Microlab 600 controller quickly performs standard dilutions and dispensing using a Quick Start screen.

Advance Controller

The Advanced controller contains a significant number of additional features and allows users to create methods using air gaps, washing, repetitive dispensing, and more.

Wizards

Wizards are designed to simplify the programming of common everyday methods. The controller ships with the most popular Wizards installed *Exclusive to advanced controller.

Syringes

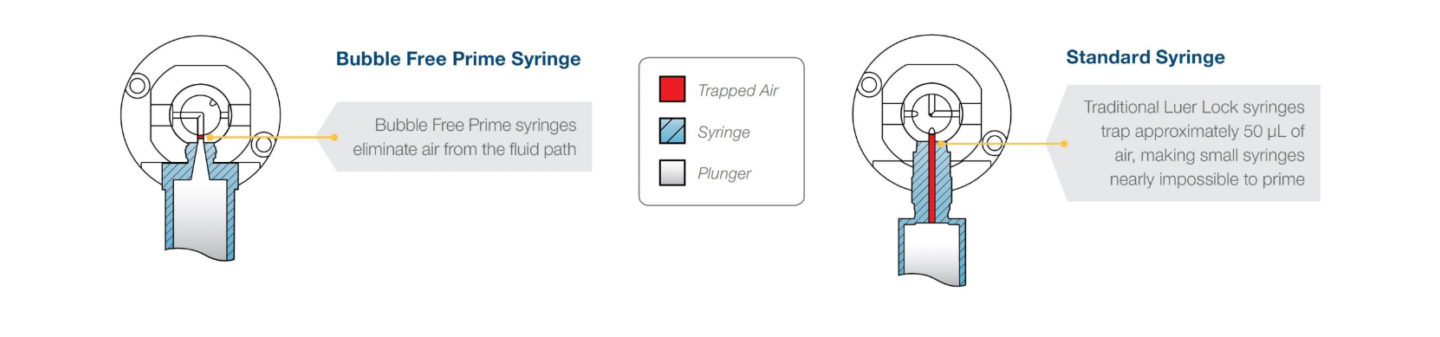

For any syringe pump, the key to achieving the most accurate dispenses is eliminating all air from the fluid path. Traditional syringes trap approximately 50 μL of air between the tip of the syringe and the valve. For small syringes, this trapped air is the last to leave the syringe and the first to be drawn back in, making them difficult if not impossible to prime.

The Bubble Free Prime syringe has a conical plunger tip that extends through the threaded termination and into the valve. This unique design expels the air from the syringe and valve decreasing the number of priming cycles required.

Bubble Free Prime Syringes vs Standard Syringes

LyncStore

The PC-based management system from Hamilton, allows users to easily view, manage, filter, archive and print log files generated on Advanced Microlab 600 diluters and dispensers. LyncStore meets 21 CFR Part 11 and FDA GMP/GLP requirements making it a valuable addition to regulated labs or labs with increased security protocols.

LEARN MORE ABOUT LYNCSTORE
